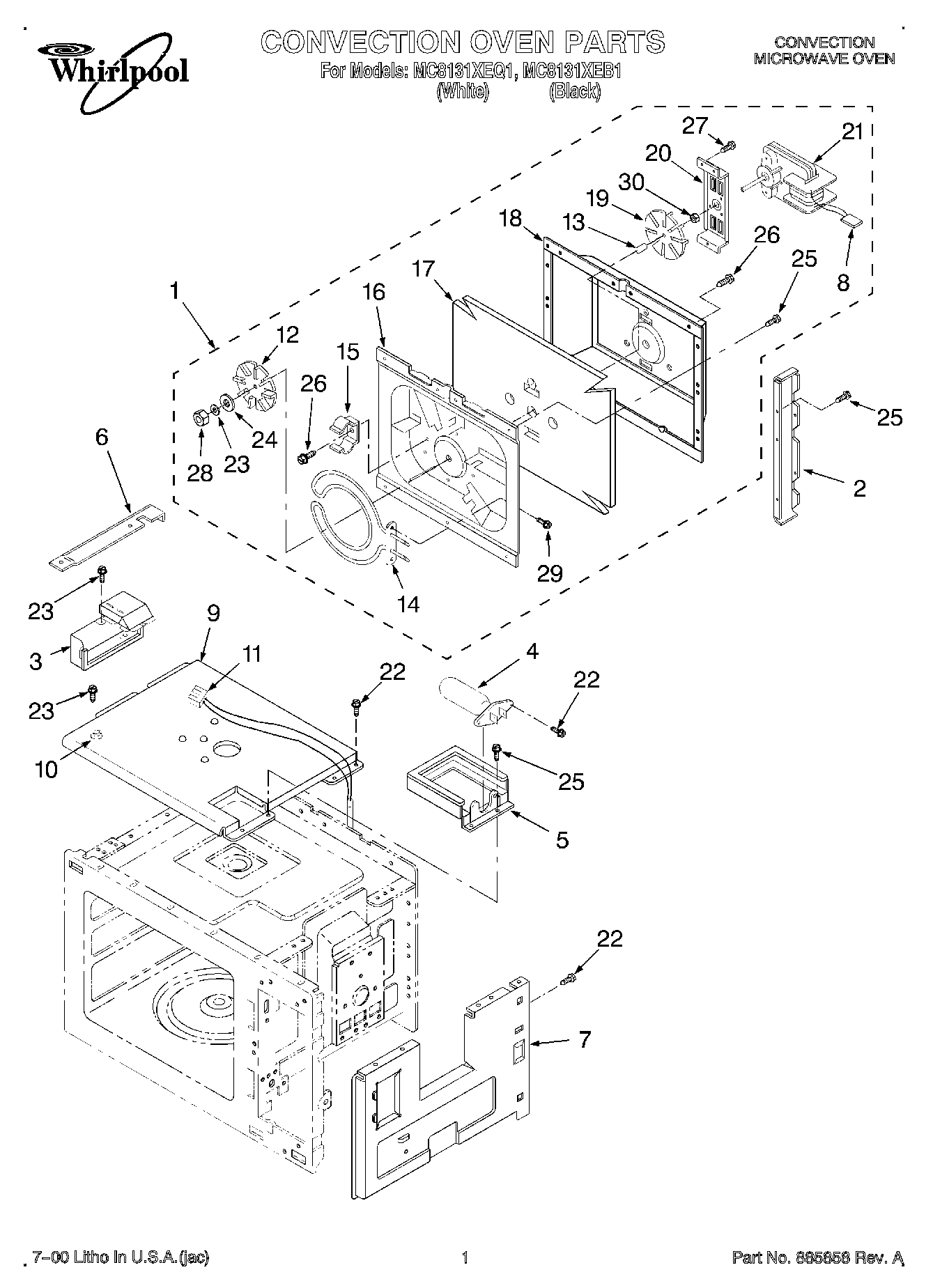

MC8131XEQ1 01 – CONVECTION OVEN

Products

Position	Product
1	Chamber Assembly
2	Bracket, Support
3	Air Tunnel
4	Lamp
5	Bracket, Lamp
6	Cover
7	Insulator
8	Motor Wire
9	Insulator
10	Thermostat
11	Thermistor
12	Fan
13	Bushing
14	Convection Element
15	Clip, Convection Element
16	Duct, Magnatron
17	Insulation
18	Insulation Shield, Back
19	Fan Blade
20	Bracket, Convection Motor
21	Convection Motor
23	W11380570 Whirlpool Microwave Screw
24	Washer
25	W11245710 Whirlpool Refrigerator Screw
26	WP3196557 Whirlpool Screw
28	Nut
29	4344826 Whirlpool Refrigerator Screw
30	Nut
