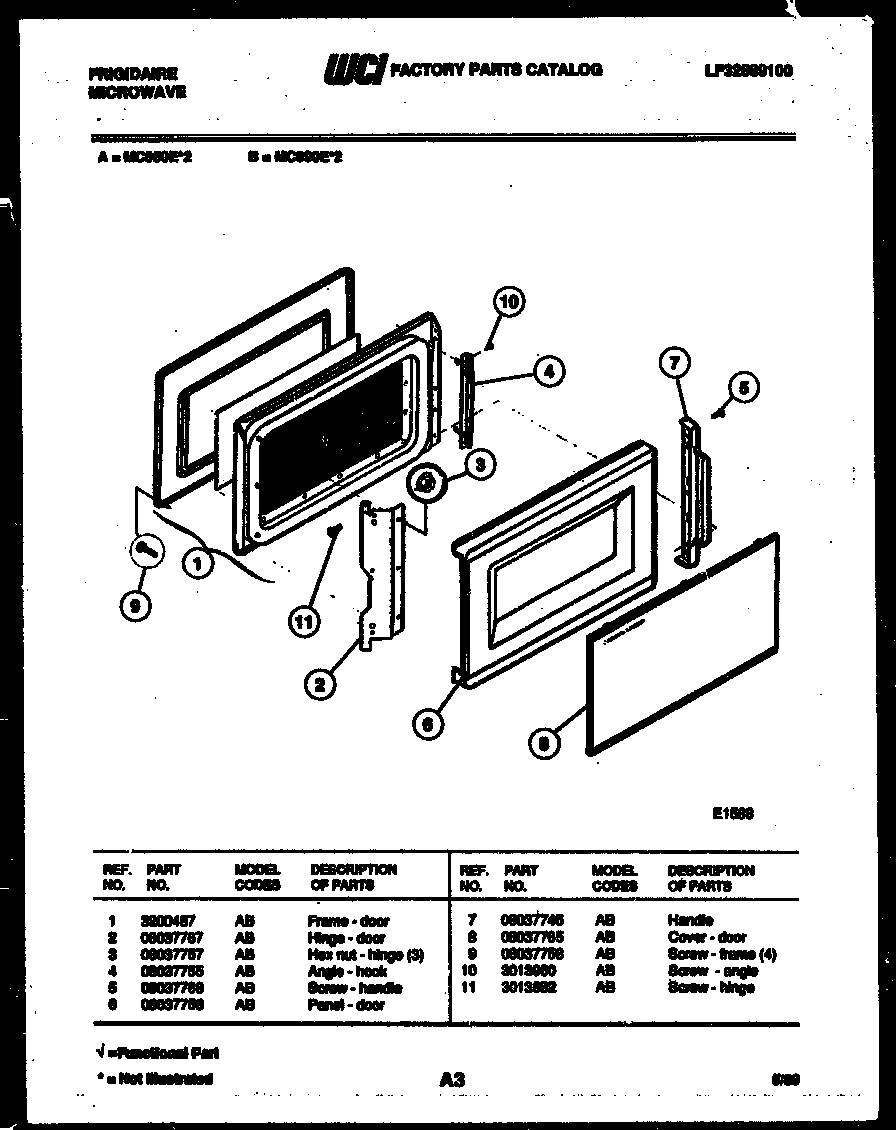

MC850E2 03 – DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | FRAME - DOOR |
| 2 | WCI 08037767 |
| 3 | HEX NUT |
| 4 | WCI 08037755 |
| 5 | WCI 08037768 |
| 6 | PANEL DOOR |
| 7 | WCI 08037745 |
| 8 | WCI 08037765 |
| 9 | WCI 08037758 |
| 10 | SCREW - ANGLE |
| 11 | SCREW - HINGE (3) |
MC850E2 03 – DOOR PARTS
| Position | Product |
|---|---|
| 1 | FRAME - DOOR |
| 2 | WCI 08037767 |
| 3 | HEX NUT |
| 4 | WCI 08037755 |
| 5 | WCI 08037768 |
| 6 | PANEL DOOR |
| 7 | WCI 08037745 |
| 8 | WCI 08037765 |
| 9 | WCI 08037758 |
| 10 | SCREW - ANGLE |
| 11 | SCREW - HINGE (3) |
