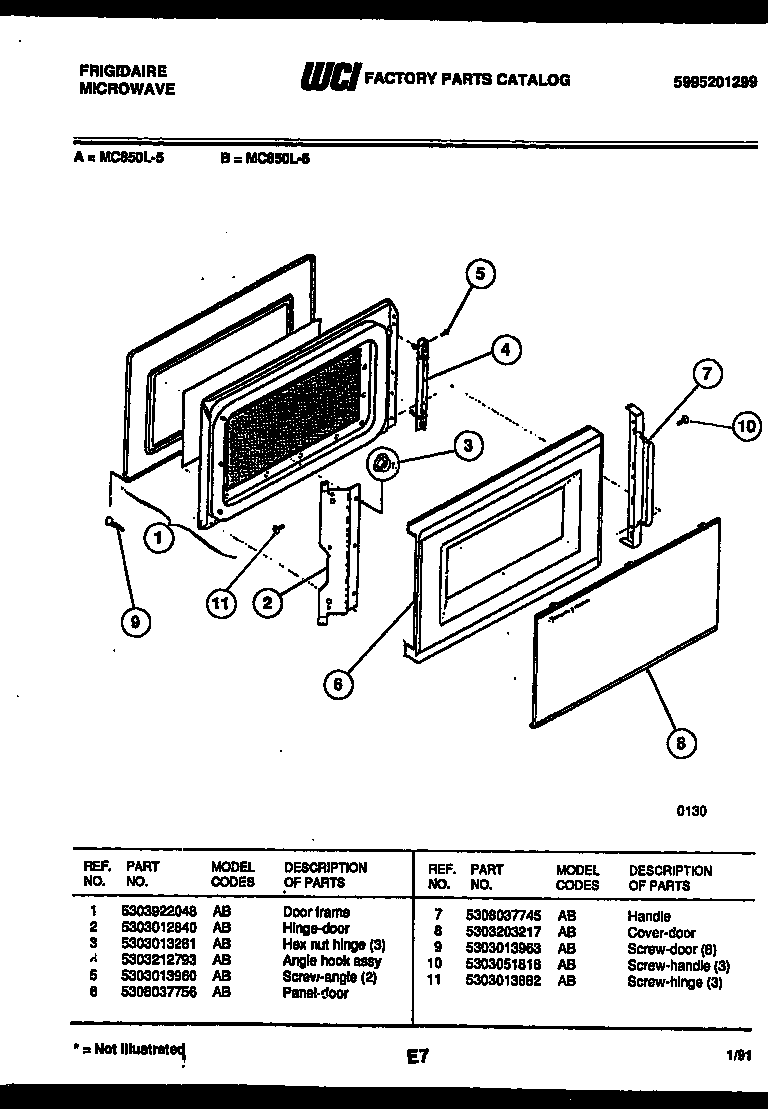

MC850L5 03 – DOOR PARTS

Products

PositionProduct
1WCI 5303922048
2WCI 5303012840
3WCI 5303013281
4ANGLE-HOOK ASSY
5SCREW-LATCH (2)
6WCI 5308037756
7WCI 5308037745
8WCI 5303203217
9SCREW-DOOR (4) (NON-ILLUSTRATED)
105303300265 Frigidaire Oven Screw
11SCREW-DOOR (4)
