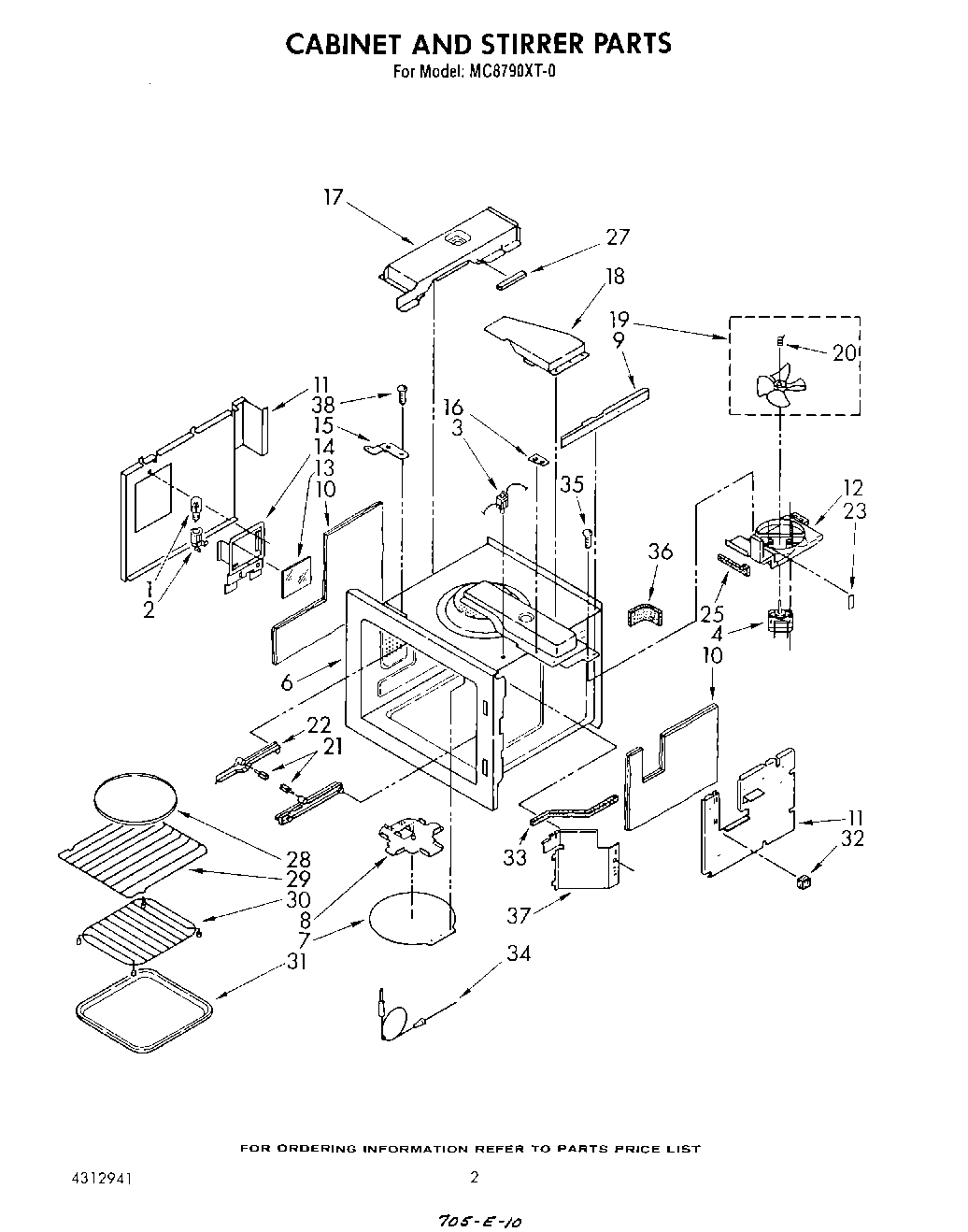

MC8790XT0 02 – CABINET AND STIRRER , LITERATURE AN

Products

Position	Product
	Wire, 25` Roll (Black 14 Ga.)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	WPL LIT4312941
	WPL LIT4312809
	WPL LIT4312804
	WPL LIT4312800
	Cord Brown (1/2 Oz.)
	Paint, Cord Brown Spray (13 Oz.)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WP482338 Whirlpool Refrigerator Adhesive
	261900 Whirlpool Microwave Spray
	242831 Whirlpool Oven Wire
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Orange)
1	WPA3073101 Whirlpool Light Bulb
2	Light Socket
3	Jack Assy.
4	Motor, Fan Cooling
6	Cavity, Oven (Not a Serviceable Part)
7	Stirrer Cover Assy.
8	Stirrer Fan Assy.
9	Support, Chassis
10	Insulation (L.H.)
10	Insulation (R.H.)
11	Panel, Oven Cavity (L.H.)
11	Panel, Oven Cavity (R.H.)
12	Stirrer Fan Duct
13	Glass, Oven Light
14	Mounting Plate, Oven Light
15	Upper Hinge
16	Divider Plate
17	Exhaust Duct Assy.
18	Cooling Duct Magnetron
19	Fan Blade Assy.
20	Clip, Retainer
21	Plastic Screw
22	Rack Support (R.H.)
22	Rack Support (L.H.)
23	Block, Foam
25	Block, Foam
27	Block, Foam
28	Cookie Sheet
29	Rack (Upper)
30	Rack (Lower)
31	Tray, Cooking
32	Block, Foam
33	Block, Foam
34	Temperature Probe Assy.
35	Screw
36	Block, Foam
37	Magnetron Duct Assy.
38	Screw (2)
