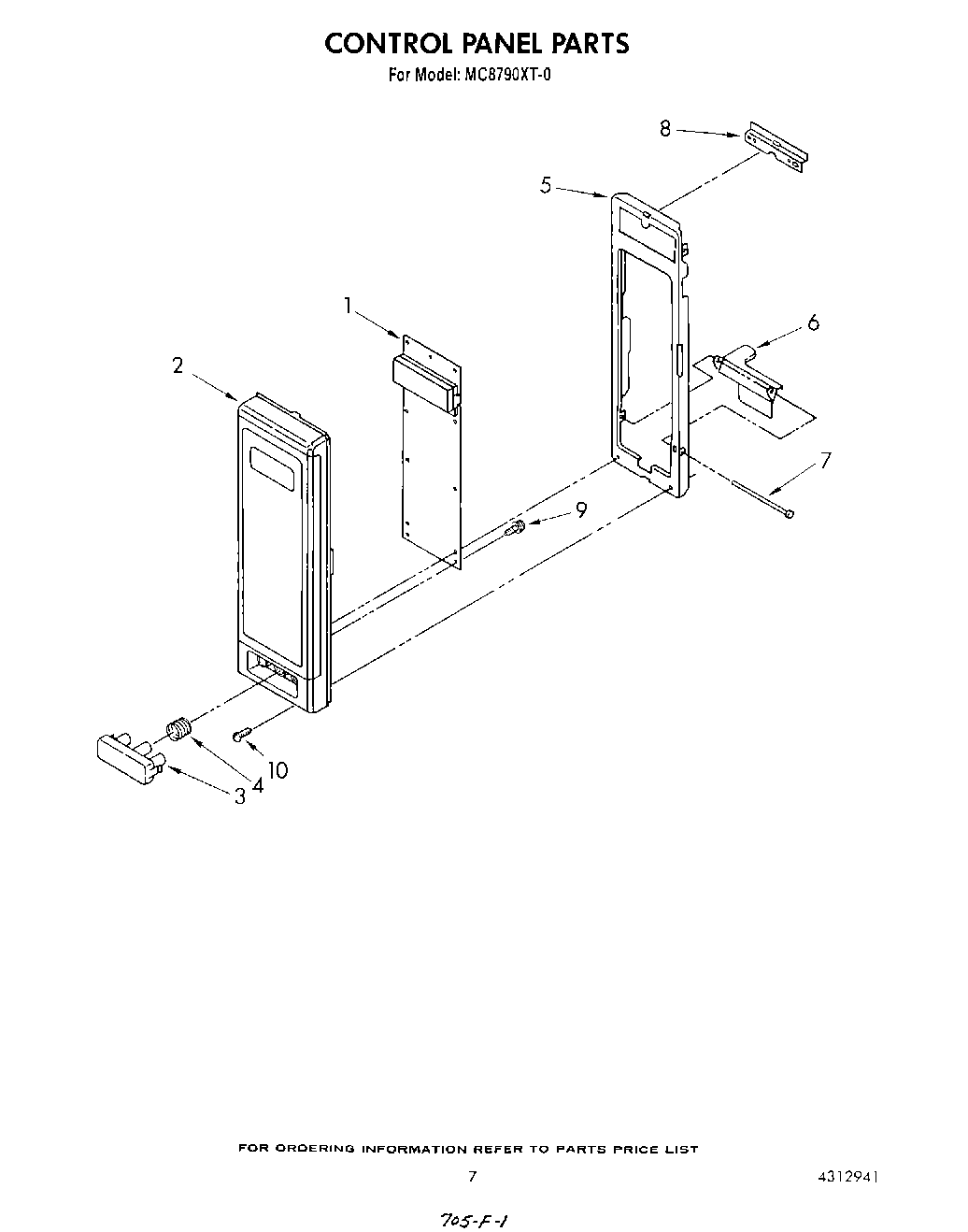

MC8790XT0 06 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Microcomputer |
| 2 | Frame, Control Panel |
| 3 | Push Button |
| 4 | Spring, Button |
| 5 | Plate, Mounting |
| 6 | Release Lever |
| 7 | Mounting Pin |
| 8 | Bracket, Mounting |
| 9 | Screw (5) |
| 10 | Screw (2) |
MC8790XT0 06 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Microcomputer |
| 2 | Frame, Control Panel |
| 3 | Push Button |
| 4 | Spring, Button |
| 5 | Plate, Mounting |
| 6 | Release Lever |
| 7 | Mounting Pin |
| 8 | Bracket, Mounting |
| 9 | Screw (5) |
| 10 | Screw (2) |
