MC8990XT0 04 – CABINET

MC8990XT0 04 – CABINET

Written by

in

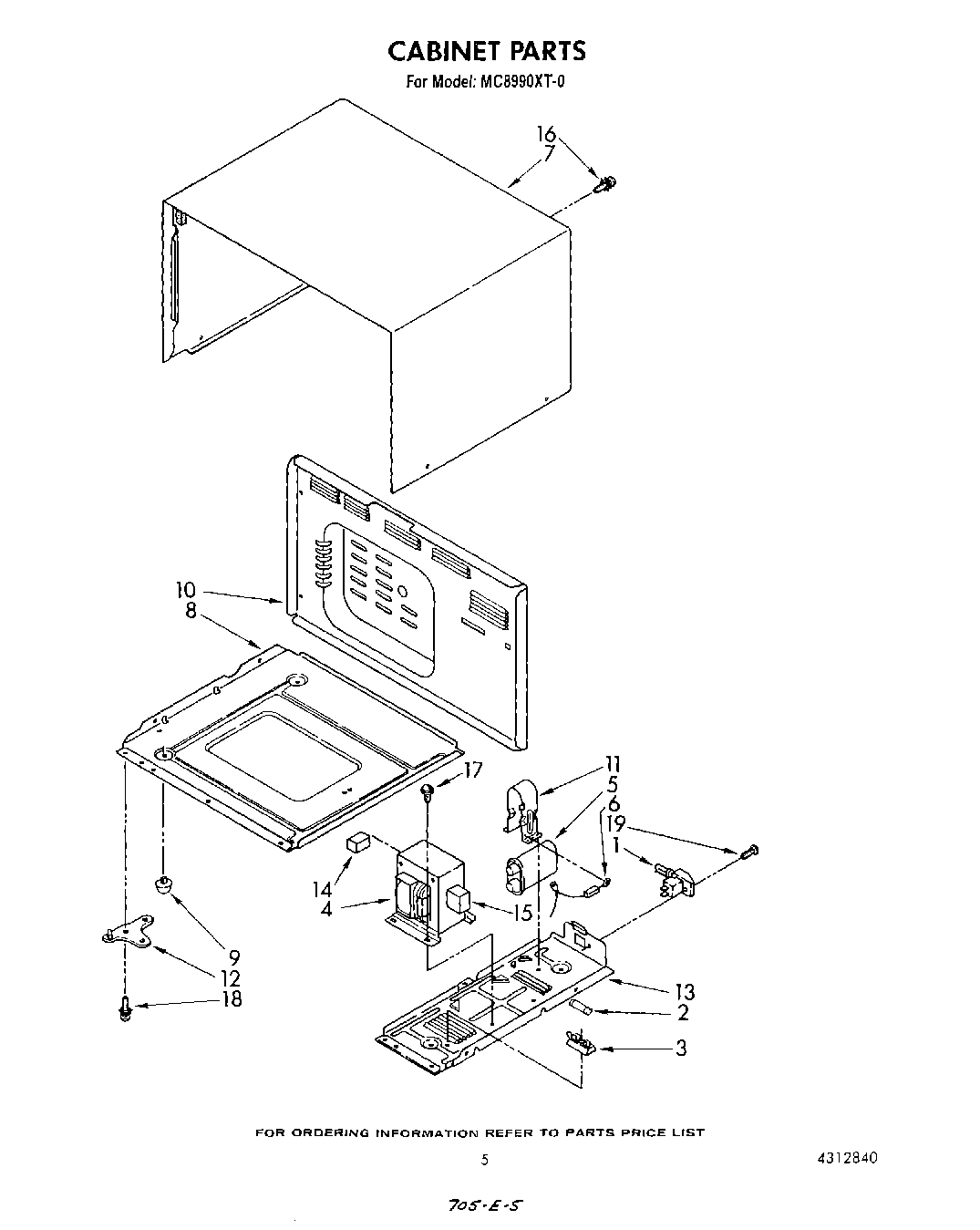

MC8990XT0 04 – CABINET

Products

Position	Product
1	Power Cord
2	Fuse, 20 Amp
3	Fuse Holder
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet
8	Cabinet Base
9	Rubber Foot
10	Cabinet Rear
11	Capacitor Holder
12	Lower Hinge
13	Extension, Cabinet Base
14	Block, Foam
15	Vibration Block
16	Screw (9)
17	Screw (2)
18	Screw (3)
19	Screw
