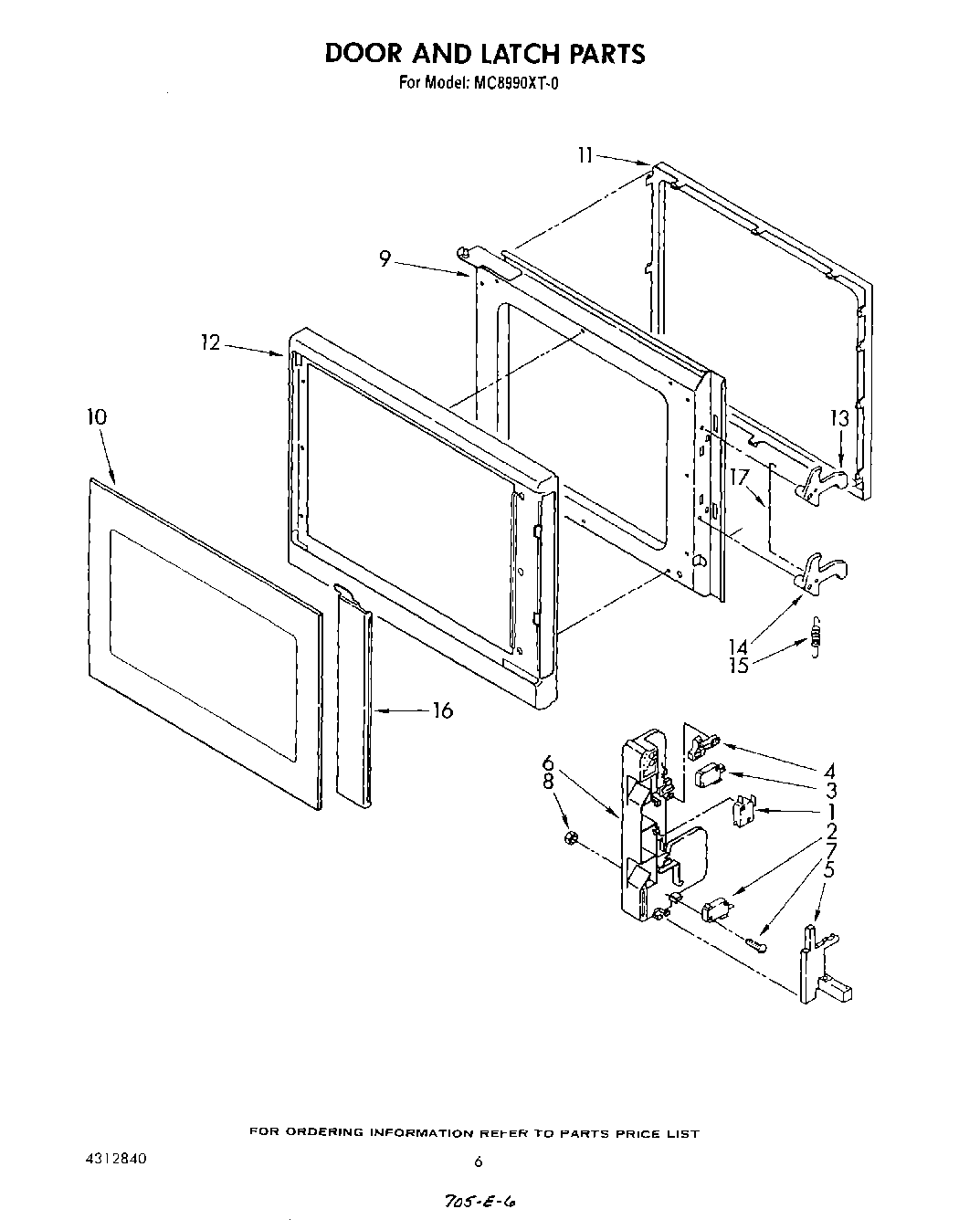

MC8990XT0 05 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assembly
2	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
7	Screw
8	Nut
9	Liner, Door
10	Panel, Glass
11	Retainer Ring
12	Door Frame
13	Upper Latch
14	Lower Latch
15	Spring, Latch
16	Cover, Frame
17	Shaft, Latch
