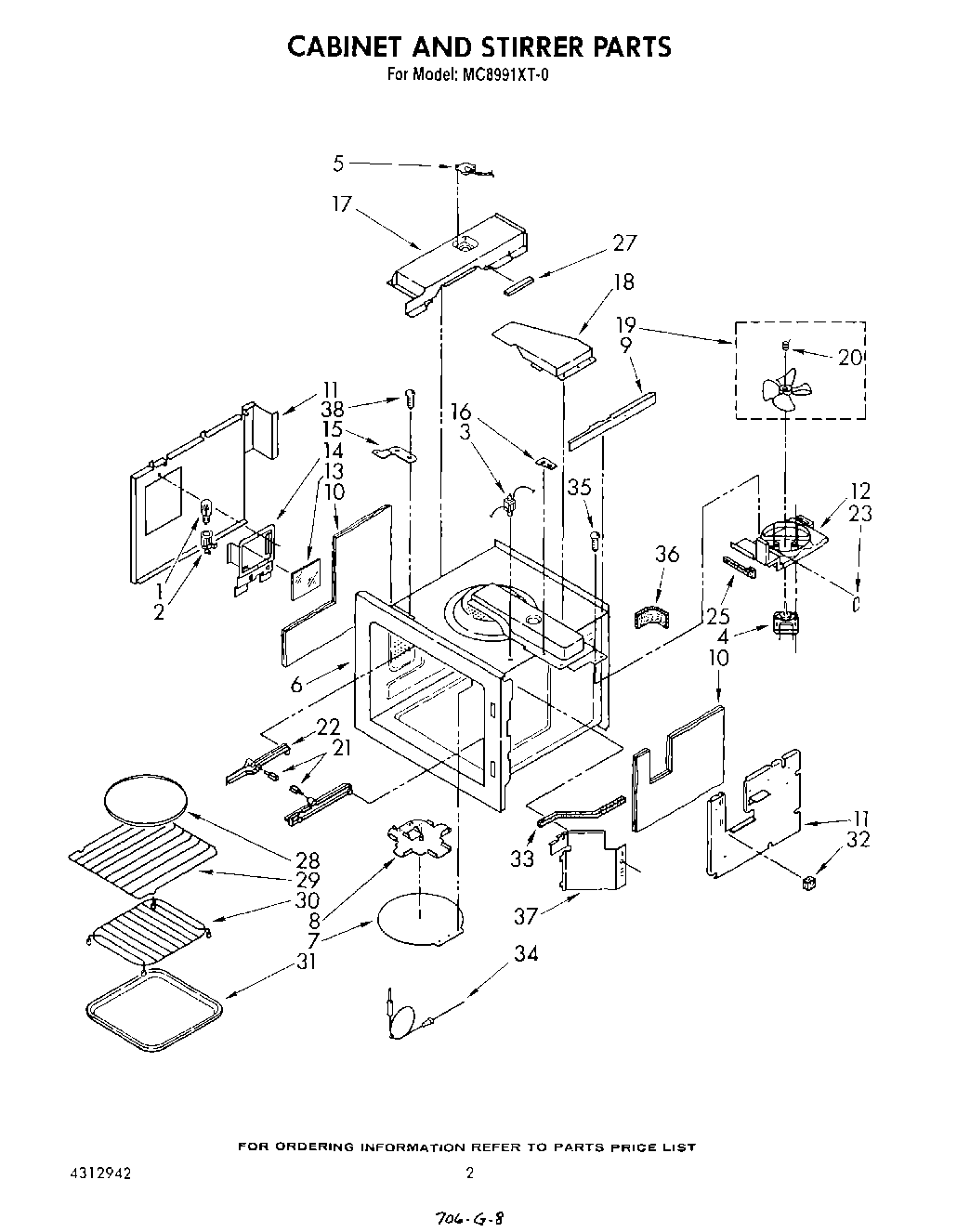

MC8991XT0 02 – CABINET AND STIRRER , LITERATURE AN

Products

Position	Product
	WPL LIT4312942
	WPL LIT4312810
	WPL LIT4312801
	WPL LIT4312804
1	WPA3073101 Whirlpool Light Bulb
2	Light Socket
3	Jack Assy.
4	Motor, Fan Cooling
5	Sensor Assy.
6	Cavity, Oven (Not a Serviceable Part)
7	Stirrer Cover Assy.
8	Stirrer Fan Assy.
9	Support, Chassis
10	Insulation (R.H.)
10	Insulation (L.H.)
11	Panel, Oven Cavity (R.H.)
11	Panel, Oven Cavity (L.H.)
12	Stirrer Fan Duct
13	Glass, Oven Light
14	Mounting Plate, Oven Light
15	Upper Hinge
16	Divider Plate
17	Exhaust Duct Assy.
18	Cooling Duct Magnetron
19	Fan Blade Assy.
20	Clip, Retainer
21	Plastic Screw
22	Rack Support (R.H.)
22	Rack Support (L.H.)
23	Block, Foam
25	Block, Foam
27	Block, Foam
28	Cookie Sheet
29	Rack (Upper)
30	Rack (Lower)
31	Tray, Cooking
32	Block, Foam
33	Block, Foam
34	Temperature Probe Assy.
35	Screw
36	Block, Foam
37	Magnetron Duct Assy.
38	Wire (14 Ga. 150 c Brown)
38	242831 Whirlpool Oven Wire
38	WPL 591014
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire (14 Ga. 150 c Blue)
38	Screw (2)
38	1
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (12 Ga. 150 c Black)
38	18 Ga. 80~c Rating (Red)
38	Wire (14 Ga. 200 c Brown)
38	261900 Whirlpool Microwave Spray
38	Paint, Cord Brown Spray (13 Oz.)
38	Cord Brown (1/2 Oz.)
38	WP261869 Whirlpool Microwave Paint
38	WP482338 Whirlpool Refrigerator Adhesive
