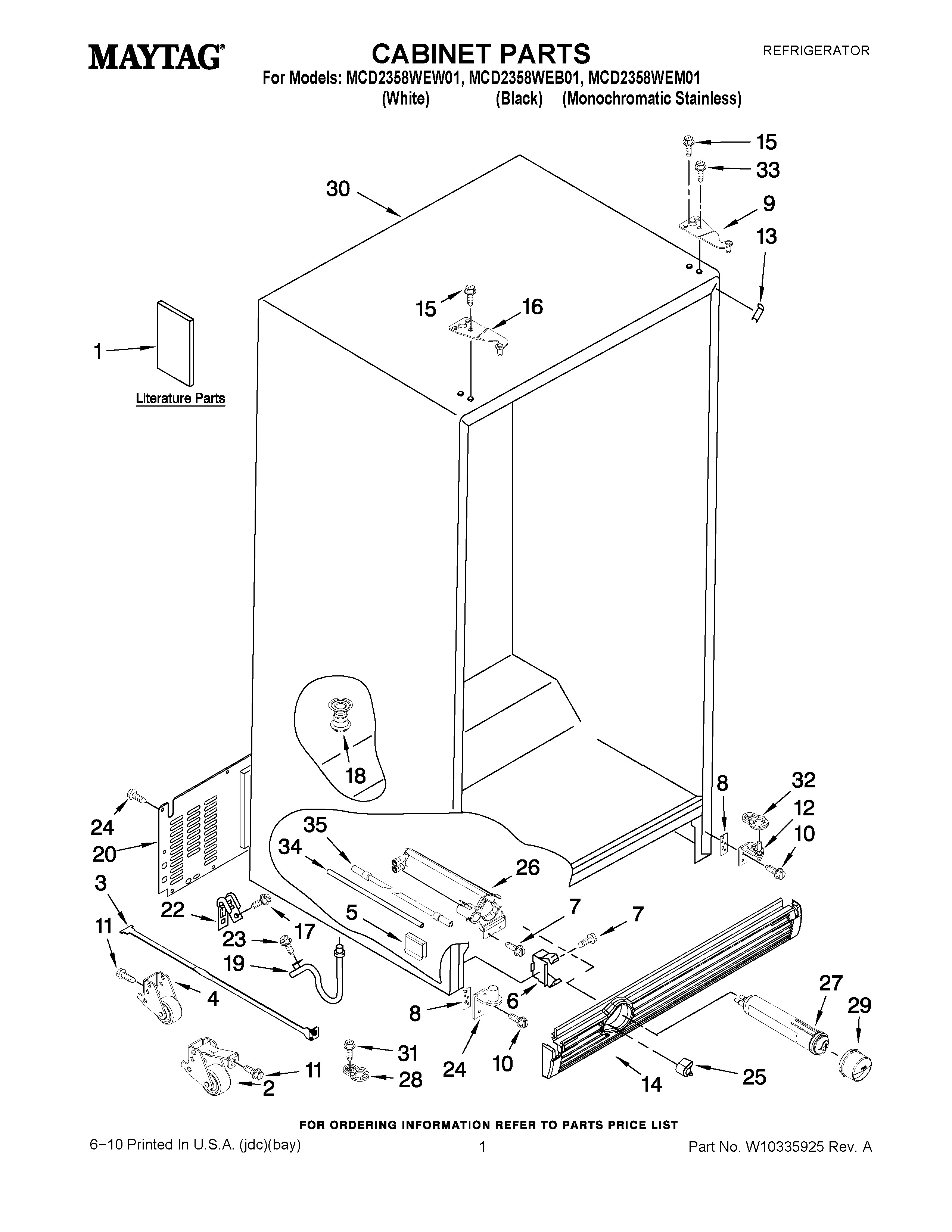

MCD2358WEB01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10168310
1	MAY 2220407
1	SERVICE & WIRING SHEET
1	MAY W10184974
1	MAY 2223996
2	MAY W10199222
2	MAY W10199223
3	MAY W10199260
4	MAY W10173132
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	MAY 489478
8	MAY 2223545
9	MAY 2307008B
9	MAY 2307008W
9	MAY 2307008AP
10	Screw (4)
11	MAY 3400243
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893W
13	MAY 2223893B
13	MAY 2223893AP
14	GRILLE, FILTER (WHITE)
14	MAY W10184057
14	Grille, Filter (Midnight Grey)
15	MAY 3400108
16	MAY 2307007B
16	MAY 2307007W
16	MAY 2307007AP
17	Screw (3)
18	MAY 2304888
19	MAY 2254566
20	MAY 2223409
22	MAY 549193
23	MAY 489084
24	Hinge Assembly, Bottom-FC (Includes 28 & 31)
25	BUTTON, WATER FILTER (GREY)
25	Button, Filter (Black)
25	MAY 2260503W
26	MAY W10121140
27	MAY 4396841
28	MAY 2307051
29	MAY 2260502B
29	MAY 2260502W
29	CAP, WATER FILTER (GREY)
30	LINER (NOT A SERVICEABLE PART)
31	MAY 489483
32	Door Closer, RC
33	MAY 3400858
34	MAY 2224020
35	MAY W10212512
