MCD2358WEB01 07 – FREEZER DOOR PARTS

MCD2358WEB01 07 – FREEZER DOOR PARTS

Written by

in

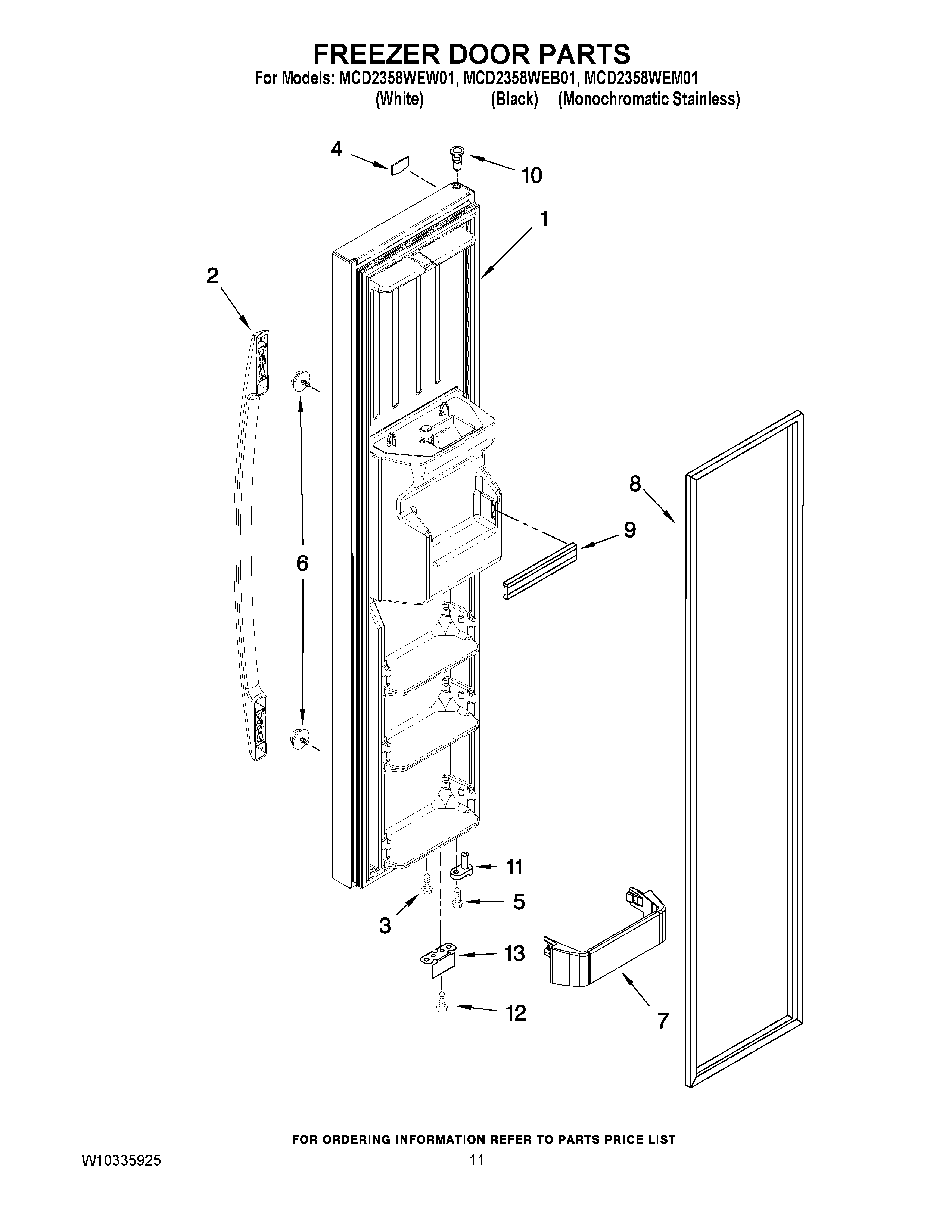

MCD2358WEB01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10201420B
1MAY W10269445
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
2HANDLE (STAINLESS STEEL)
2HANDLE (WHITE)
2HANDLE (BLACK)
3MAY W10193334
4Nameplate
5MAY 3400012
6MAY W10129563
7SHELF BIN
8MAY 2223850
8MAY 2223912
9MAY W10307494
10MAY 2308091
11DOOR CLOSER, UPPER CAM
12MAY 489420
13BRACKET, DOOR STOP (CHROME)
13MAY W10215323
