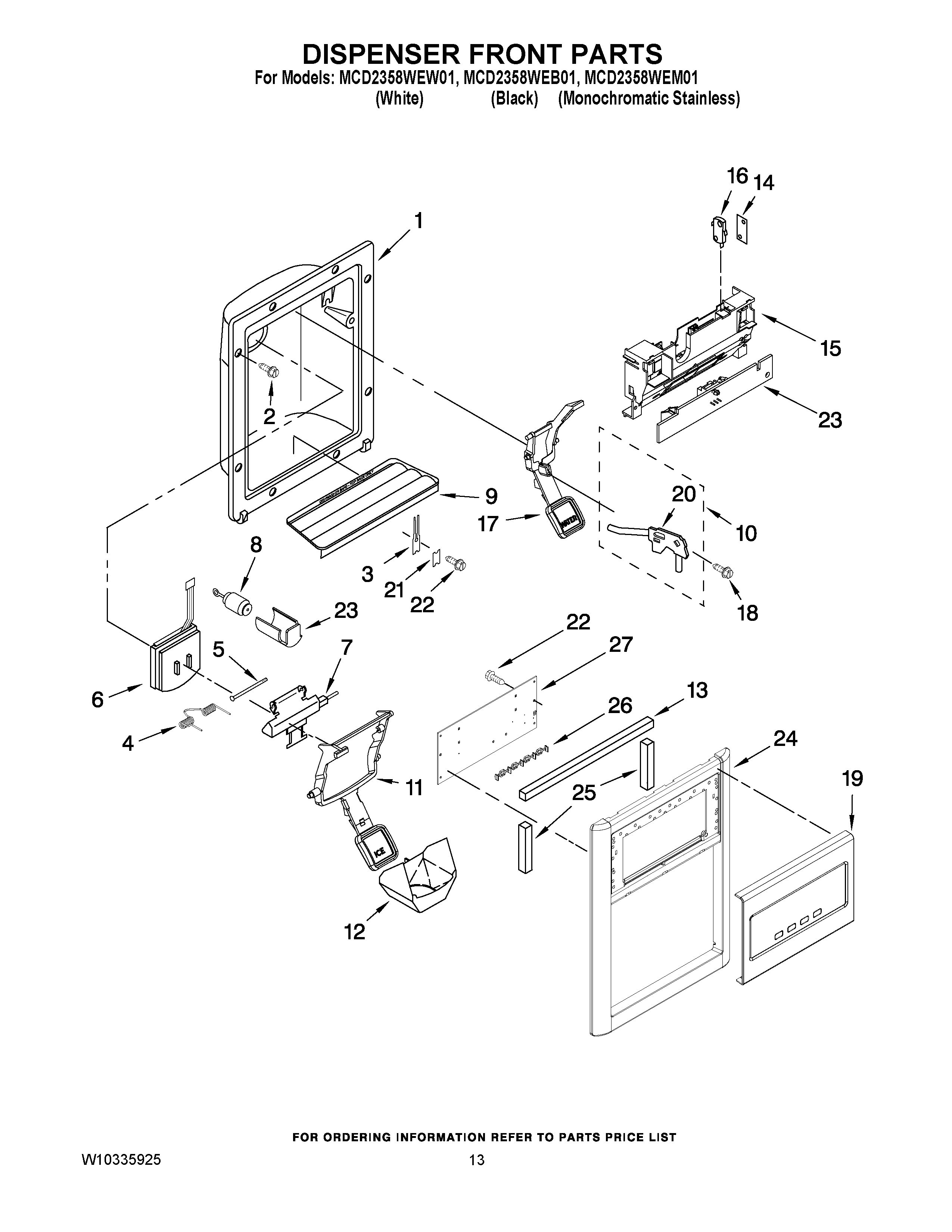

MCD2358WEB01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw
3	MAY 2194719
4	MAY W10224328
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	GRILLE, OVERFLOW (BLACK)
9	MAY W10323445
9	MAY W10171993
10	MAY 2304317
11	MAY W10152855
11	MAY W10155161
11	MAY W10152853
11	MAY W10152854
12	MAY 2180224
13	MAY 2305571
14	MAY 625834
15	MAY W10206221
16	Switch (4)
17	MAY W10152858
17	MAY W10152859
17	MAY W10155162
17	MAY W10152860
18	MAY 489000
19	MAY W10136850
19	BEZEL, DISP (STAINLESS,)
19	MAY W10136851
19	Front Cover, Housing (Stainless)
19	Front Cover, Housing (Biscuit)
20	MAY 2304673
21	MAY 2195051
22	SCREW (STAINLESS)
23	MAY W10245284
24	FASCIA ASSY, DISP (WHITE)
24	FASCIA ASSY, DISP (BLACK)
24	MAY W10236475
25	GASKET, DISP (2)
26	MAY W10170412
27	CTRL-ELEK, DISP
