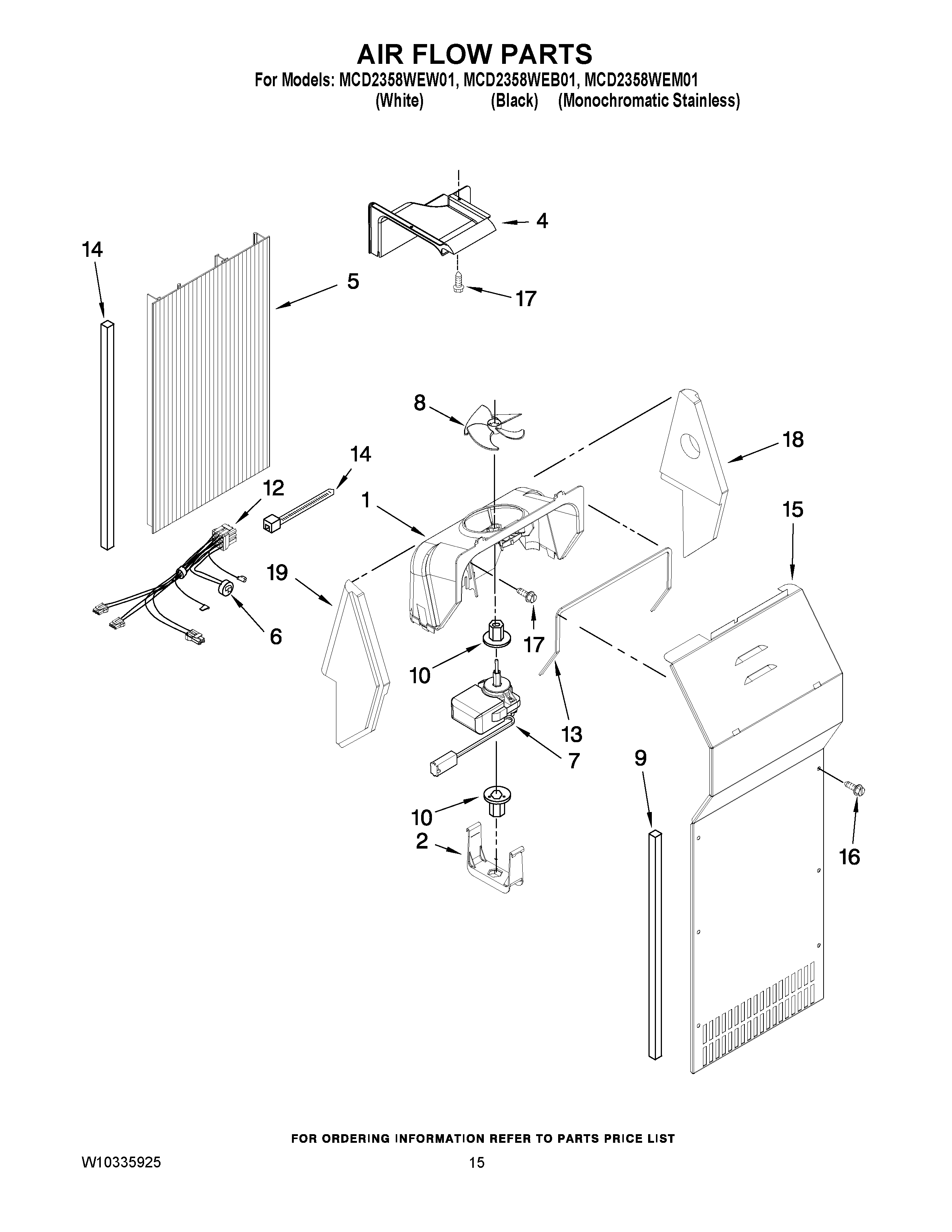

MCD2358WEB01 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2223733
4	MAY W10256500
5	DUCT, FREEZER COMPARTMENT AIR
6	MAY W10225581
7	MAY 2259385
8	Blade, Fan (Evaporator)
9	Gasket
10	Grommet
12	MAY W10297478
13	Gasket, Fan Scroll
14	MAY 2203876
15	MAY 2223413
16	MAY 8281159
17	MAY 489478
18	MAY 2223395
19	SUPPORT, FAN SCROLL (LEFT HAND)
