MCD2358WEB01 11 – UNIT PARTS

MCD2358WEB01 11 – UNIT PARTS

Written by

in

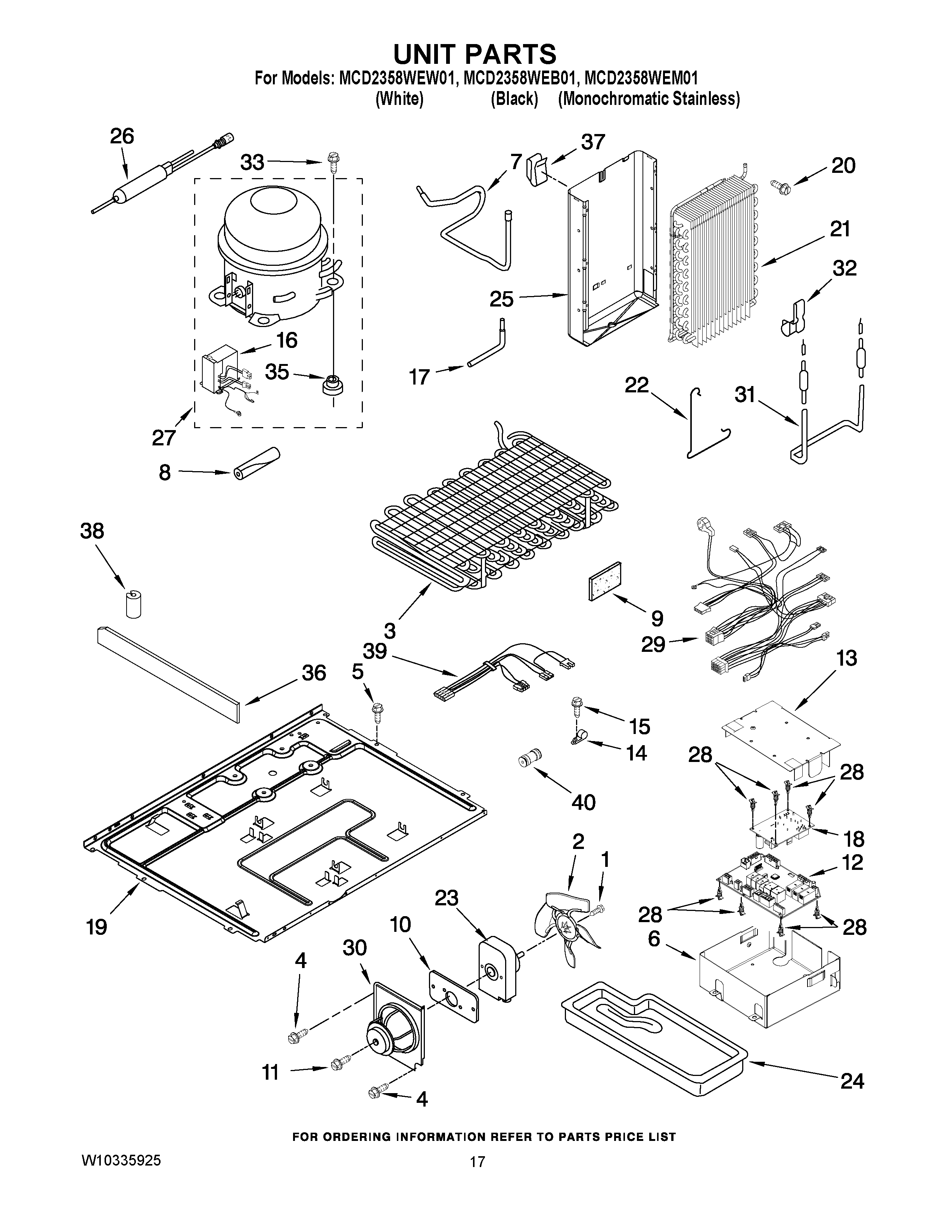

MCD2358WEB01 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
2	MAY W10139483
3	MAY W10193018
4	MAY 8533859
5	MAY 3400524
6	MAY W10199261
7	MAY 2223351
8	Sleeve, Pressure Switch Hose
9	SEALER, INSULATION
10	MAY W10165989
11	Screw (3)
12	Control-Elek, Power Supply
13	MAY W10293050
14	MAY 1115374
15	MAY 488649
16	INVERTER BOX ASSY
17	MAY 2325479
18	ELECTRONIC CONTROL
19	MAY 2306932
20	MAY 489478
21	Evaporator
22	Clip
23	MOTOR, CONDENSOR
24	MAY 2223398
25	MAY 2224022
26	Drier
27	COMPRESSOR (INCLUDES ITEM 16 & 35)
28	Spacer (5)
29	MAY W10129751
30	MAY 2224024
31	MAY 2323199
32	MAY 2304287
33	MAY 489373
35	Grommet (Production)
36	MAY 2223394
37	MAY 2155547
38	GROMMET, CONDENSER
39	MAY 2187737
40	MAY 2303216
