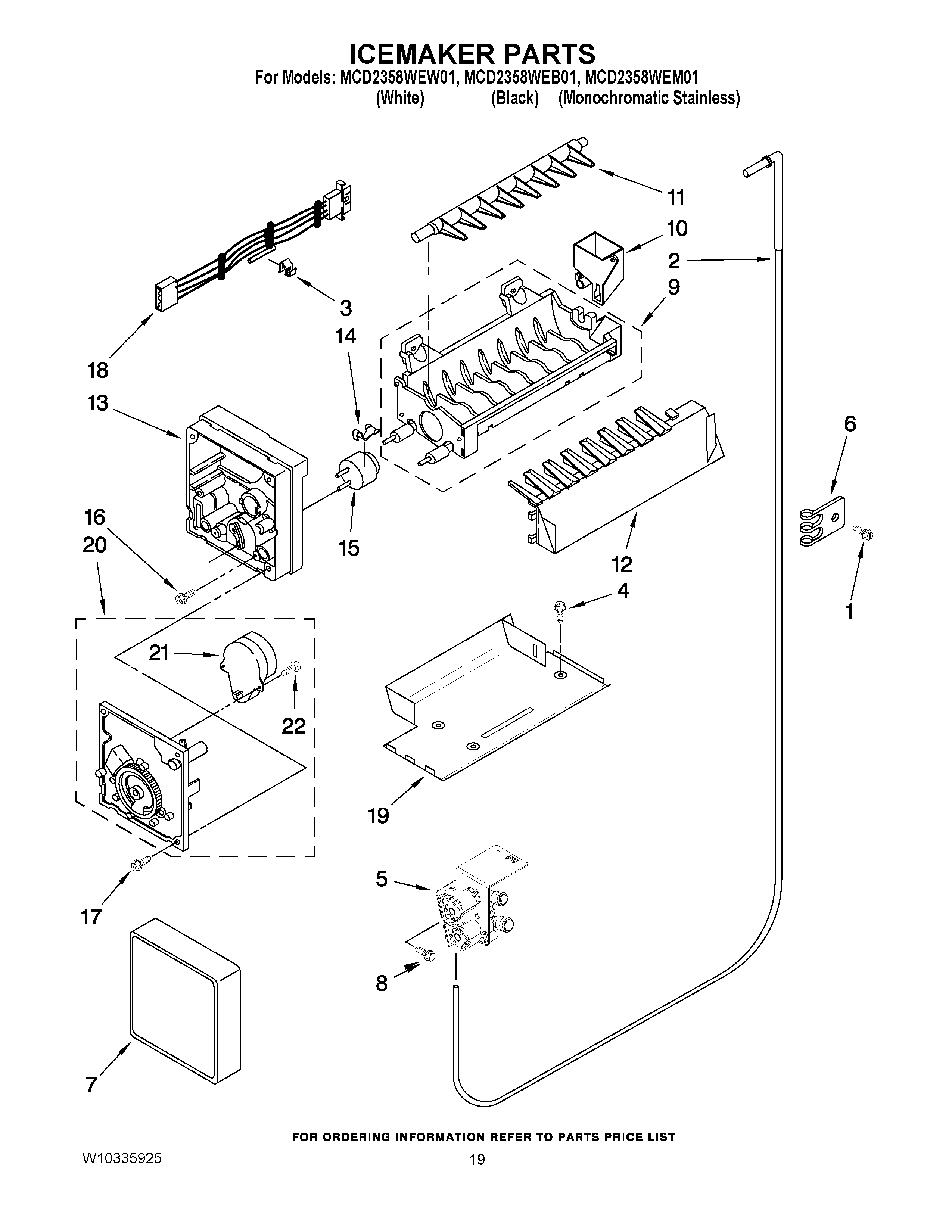

MCD2358WEB01 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY W10271542
3	Clip
4	MAY 489478
5	MAY W10210603
6	Clip, Tube
7	COVER
8	MAY 488649
9	MAY W10122527
10	MAY W10272168
11	MAY 627843
12	STRIPPER, ICE
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187467
19	Bracket, Ice Maker Mounting
20	Module Assembly (Includes Items 23 and 24)
21	MAY 626683
22	MAY 489136
100	MAY W10272869
