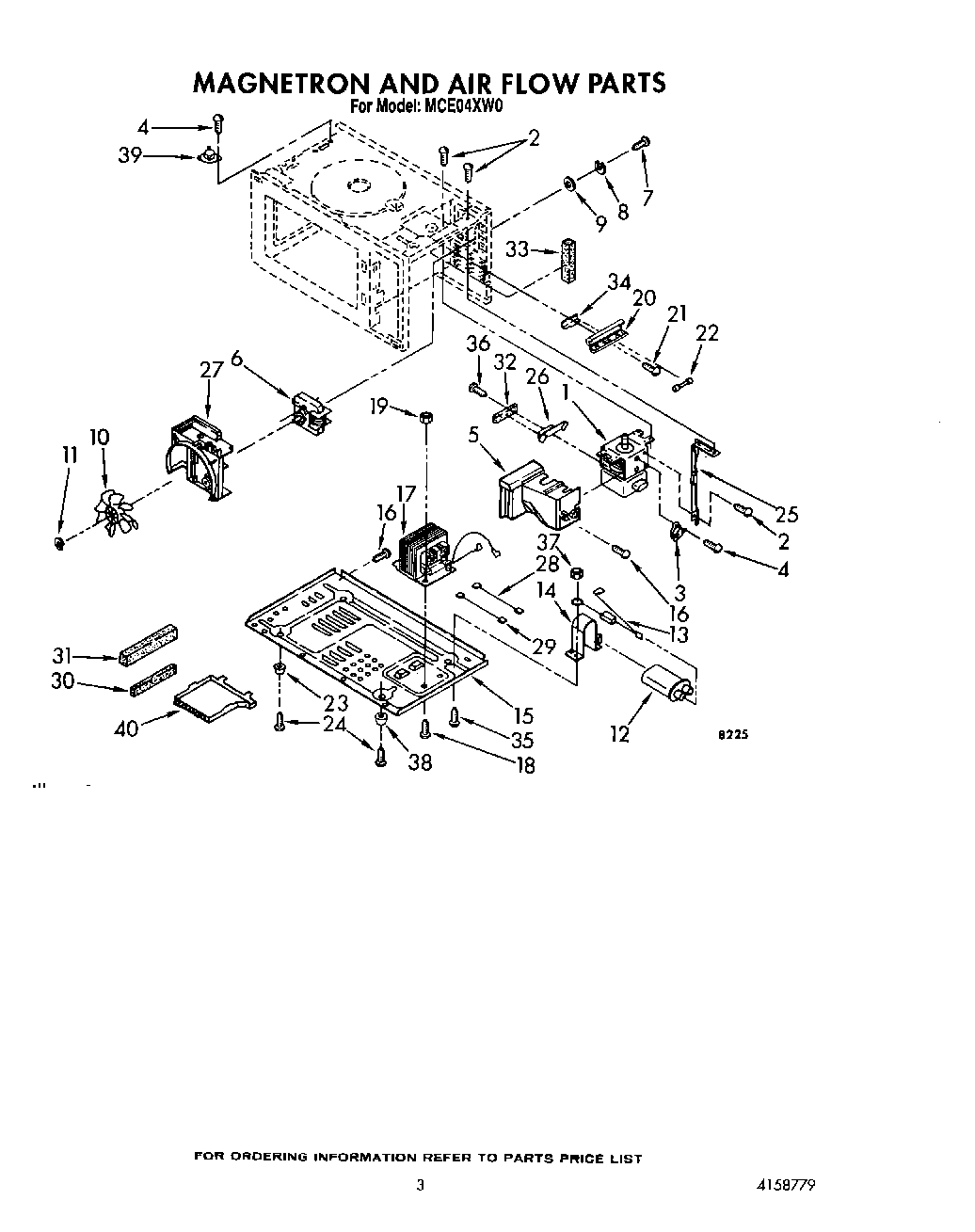

MCE04XW0 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermostat
4	Screw (2)
5	Duct, Air
6	Motor, Fan
7	Screw, 4 x 10 mm
8	Washer
9	Washer
10	8184292 Whirlpool Microwave Fan Blade
11	E-Ring
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Plate, Base
16	W11380570 Whirlpool Microwave Screw
17	Transformer
18	Screw, 5 x 12mm
19	Nut (2)
20	Holder, Fuse
21	Screw (2)
22	Fuse
23	Foot, Left (2)
24	Screw
25	Cover
26	Bracket, Magnetron
27	Cover, Fan
28	Lead, High Voltage
29	Lead, High Voltage
30	Seal, Foam
31	Seal, Foam
32	Seal, Foam
33	Seal, Foam
34	Plate, Discharge
35	Screw, 4 x 8 mm
36	Screw (2)
37	Nut
38	Foot, Right (2)
39	Thermostat
40	Bracket, Base
