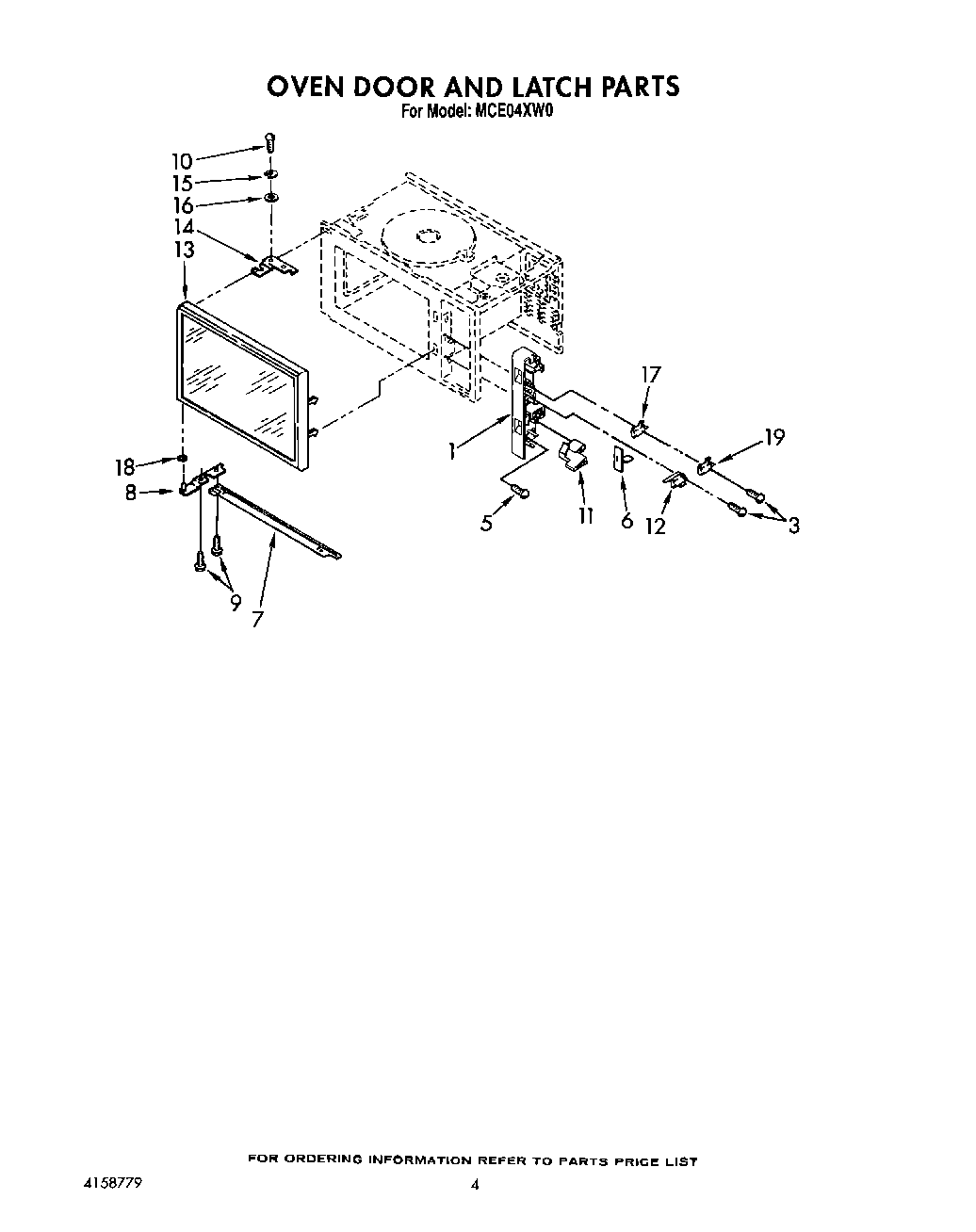

MCE04XW0 04 – OVEN DOOR AND LATCH

Written by

Products

Position	Product
1	Latch Board
3	Screw, 3 x 20mm
5	Screw (2)
6	Rod, Release
7	Pin, Protector
8	Hinge Plate, Lower
9	WP3400094 Whirlpool Screw
10	Screw, 5 x 16mm
11	Lever Switch
13	Door, Complete
14	Hinge Plate, Upper
15	Washer
16	Washer
17	4392027 Whirlpool Microwave Primary Switch
18	Hinge Washer
