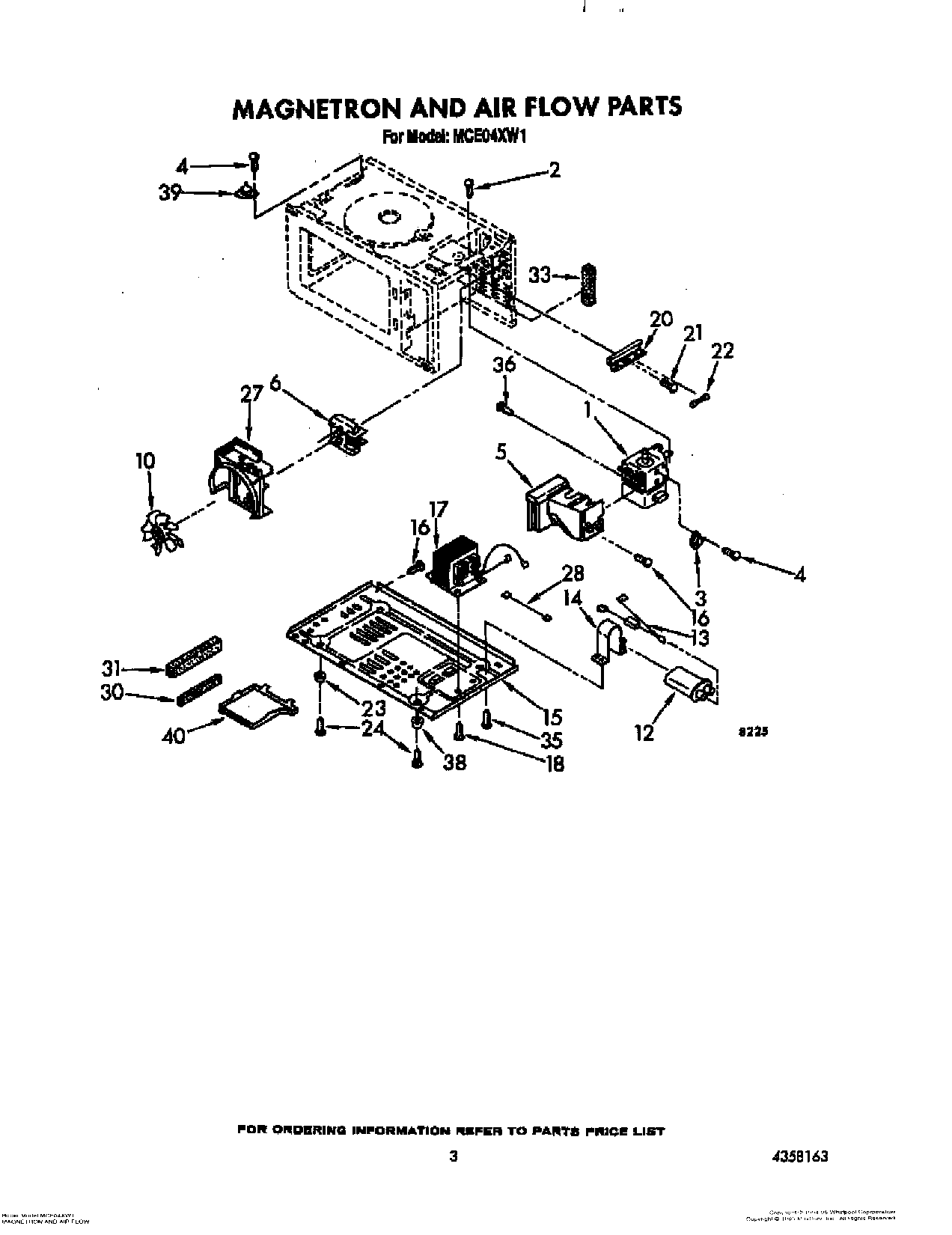

MCE04XW1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Screw, 4 x 8 mm
3	Thermostat
4	Screw (2)
5	Duct, Air
6	Motor, Fan
10	8184292 Whirlpool Microwave Fan Blade
12	Capacitor
13	Diode Cable
14	Bracket, Capacitor
15	Plate, Base
16	W11380570 Whirlpool Microwave Screw
17	Transformer
18	Screw, 5 x 12mm
20	Holder, Fuse
21	Screw (2)
22	Fuse
23	Foot, Left (2)
24	Screw
27	Cover, Fan
28	Lead, High Voltage
30	Seal, Foam
31	Seal, Foam
33	Seal, Foam
35	Screw, 4 x 8 mm
36	Screw (2)
38	Foot, Right (2)
39	Thermostat
40	Bracket, Base
