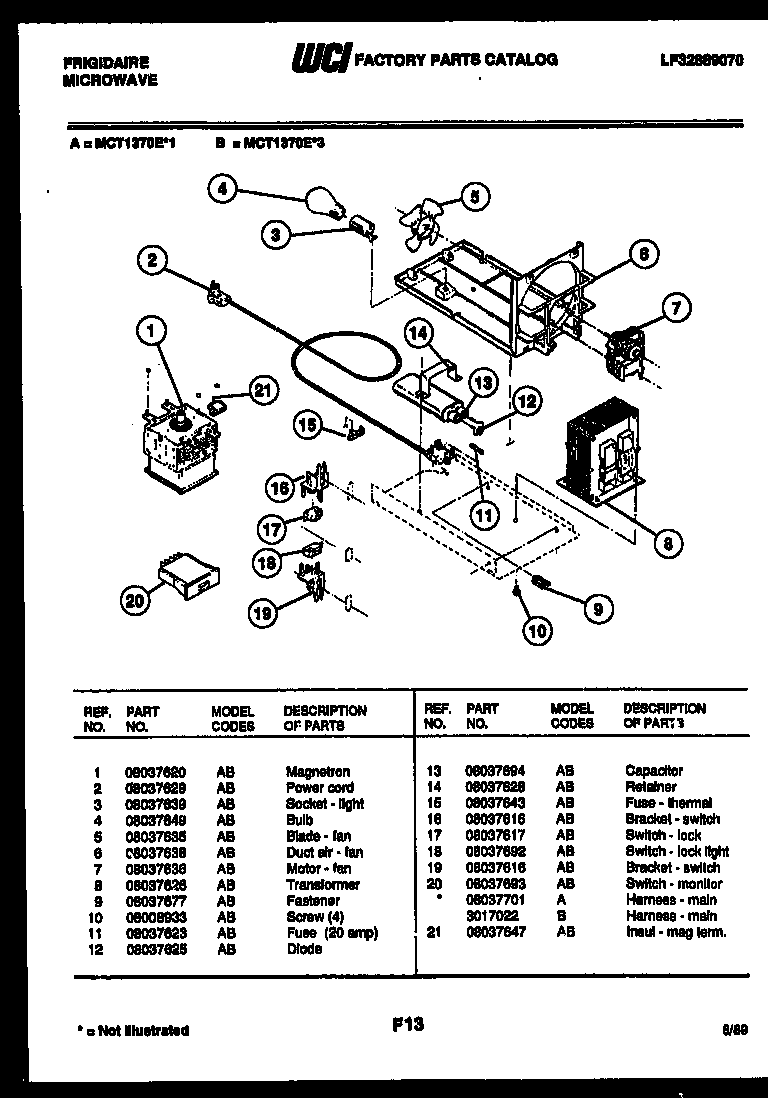

MCT1370E3 05 – POWER CONTROL

Products

Position	Product
1	MAGNETRON
2	WCI 08037629
3	WCI 08037639
4	316538904 Frigidaire Oven Lamp Light
5	BLADE - FAN
6	WCI 08037638
7	WCI 08037636
8	WCI 08037626
9	WCI 08037677
10	WCI 08008933
11	FUSE - 20 AMP
12	WCI 08037625
13	WCI 08037694
14	WCI 08037628
15	WCI 08037643
17	SWITCH - INTERLOCK (2)
18	SWITCH - LOWER
19	BRACKET - SWITCH
20	WCI 08037693
20	INSULATION-PANEL CNTRL
21	INSULATOR
