MCT1380A2 04 – FUNCTIONAL PARTS

MCT1380A2 04 – FUNCTIONAL PARTS

Written by

in

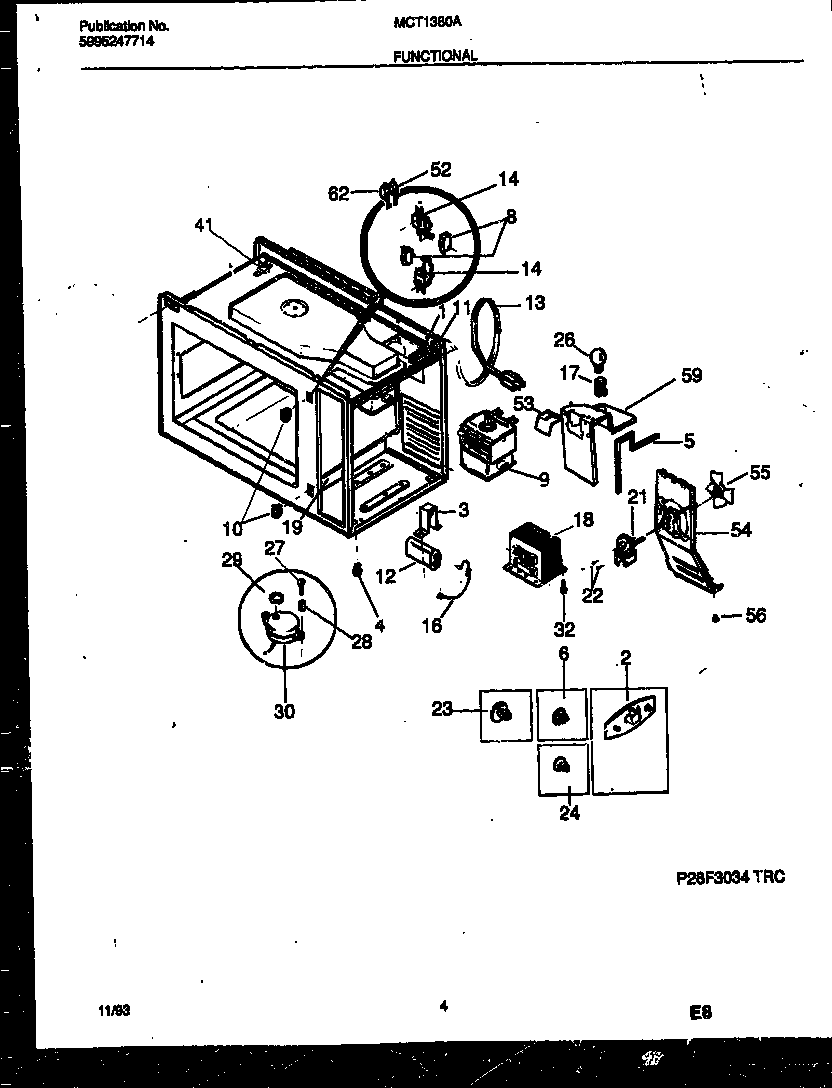

MCT1380A2 04 – FUNCTIONAL PARTS

Products

PositionProduct
*89430WCI 317000408
1FUSE-20 AMP
2PLUG-BUTTON
3WCI 5303013771
4WCI 5303295314
5SEAL-FOAM CUT TO SIZE
6PLUG-BUTTON
8WCI 5303203636
9WCI 5303286175
10WCI 5303212767
11WCI 5303212769
12WCI 5303269608
13WCI 317005403
14WCI 317000702
16WCI 5303269837
17SOCKET, OVEN LAMP, 120V
18WCI 317016902
19WCI 5303273954
21WCI 5303922053
22WCI 317004703
23PLUG-BUTTON (8)
24PLUG-BUTTON TRAY (2)
26LAMP-120V
27WCI 317009501
28SPACER-MOTOR
29WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30AWCI 5303273297
30BWCI 5303292336
30WCI 317005501
32SCREW – TRANS (4) (NON-ILLUSTRATED)
41WCI 5303283522
52WCI 317005104
53WCI 5303269832
54WCI 5303269833
55WCI 5303269834
56WCI 5303269846
59WCI 5303286094
62WCI 317005103
