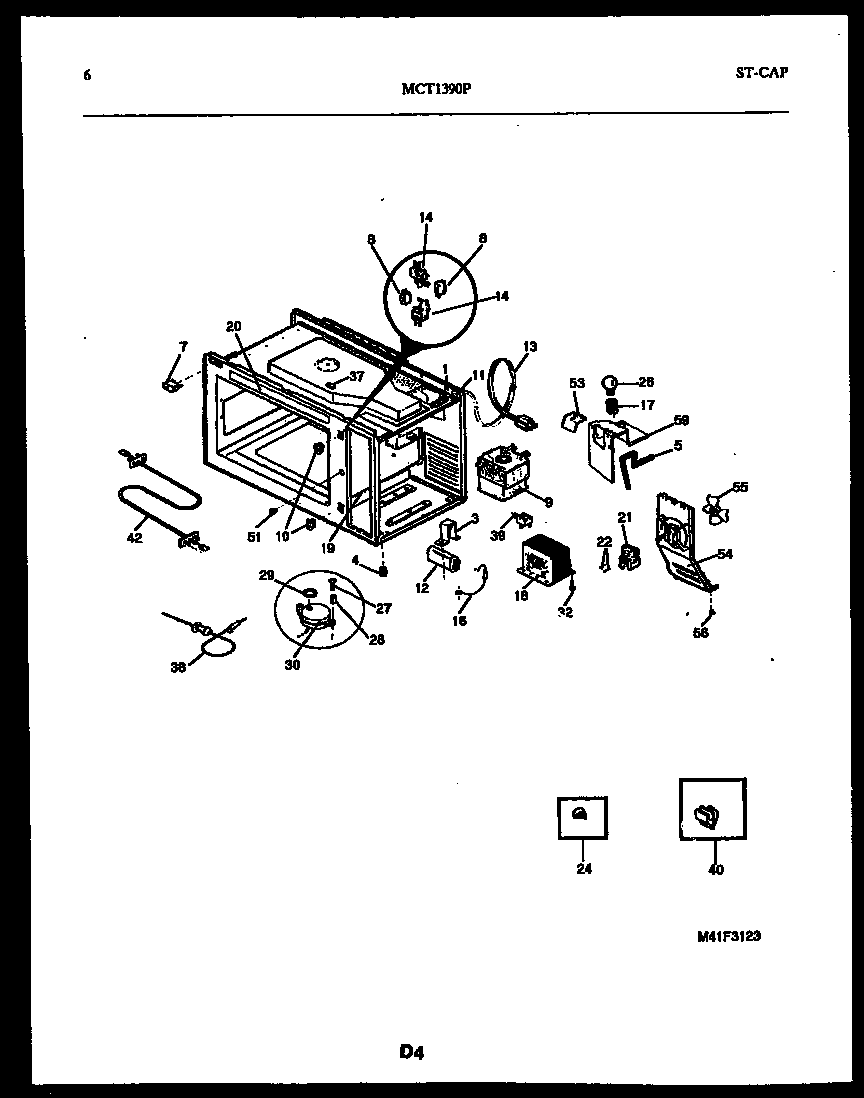

MCT1390P3 04 – FUNCTIONAL PARTS

Products

Position	Product
*68668	NUT
1	FUSE-20 AMP
3	WCI 5303013771
4	FOOT (4)
5	SEAL-FOAM CUT TO SIZE
7	SWITCH-MONITOR
8	WCI 5303203636
9	WCI 5303206781
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303269608
13	WCI 317005401
14	BRKT-SWITCH-LOWER
16	WCI 5303269837
17	SOCKET, OVEN LAMP, 120V
18	WCI 5303212811
19	WCI 5303273954
20	LABEL-COOK GUIDE (NON-ILLUSTRATED)
21	WCI 5303922053
22	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
22A	HEX NUT
24	PLUG-BUTTON TRAY (2)
26	LAMP-120V
27	WCI 317009501
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30A	WCI 5303292336
30	WCI 317005501
30B	WCI 5303274085
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
37	SPACER
38	WCI 5303011684
39	WCI 5303013702
