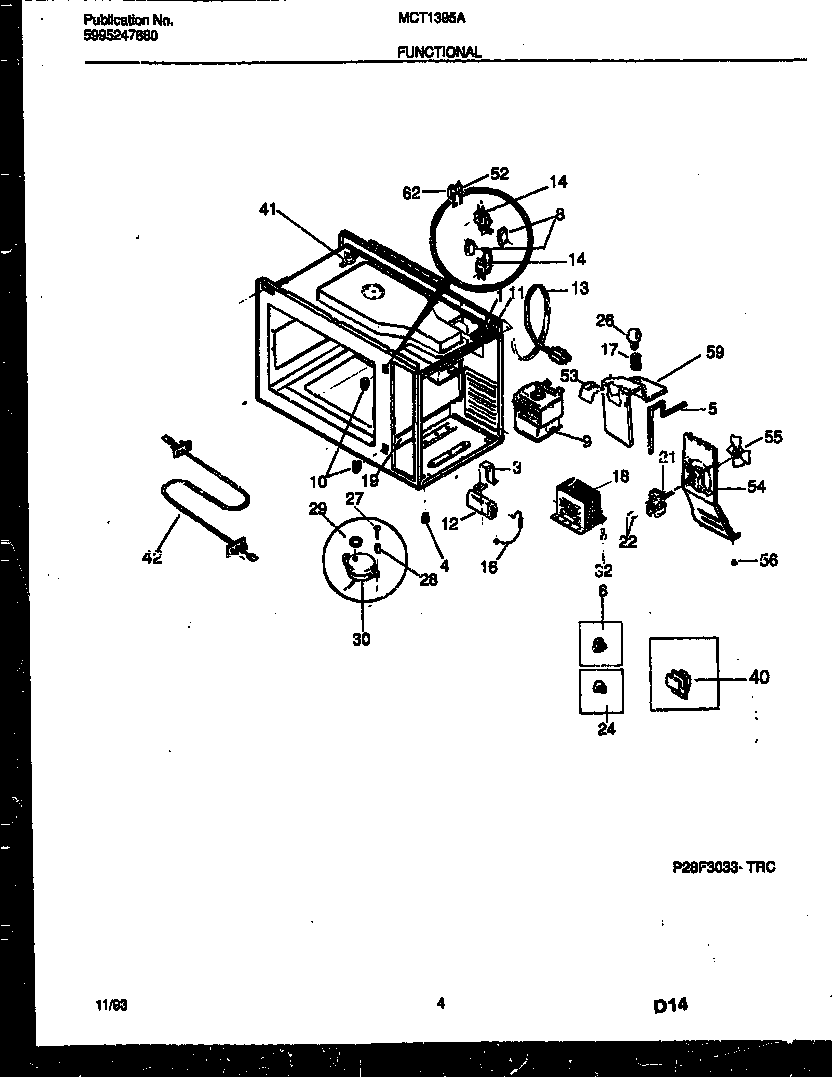

MCT1395A2 04 – FUNCTIONAL PARTS

Products

Position	Product
*89372	WCI 317000408
1	FUSE-20 AMP
3	WCI 5303013771
4	WCI 5303295314
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
8	WCI 5303203636
9	WCI 5303286175
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303269608
13	WCI 317005403
14	WCI 317000702
16	WCI 5303269837
17	SOCKET, OVEN LAMP, 120V
18	WCI 317016902
19	WCI 5303273954
21	WCI 5303922053
22	WCI 317004703
24	PLUG-BUTTON TRAY (2)
26	LAMP-120V
27	WCI 317009501
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30	WCI 317005501
30A	WCI 5303292336
30B	WCI 5303273297
32	SCREW - TRANS (4) (NON-ILLUSTRATED)
40	SUPPORT RACK (8)
41	WCI 5303283522
42	WCI 5303212785
42A	WCI 317006202
52	WCI 317005104
53	WCI 5303269832
54	WCI 5303269833
55	WCI 5303269834
56	WCI 5303269846
59	WCI 5303286094
62	WCI 317005103
