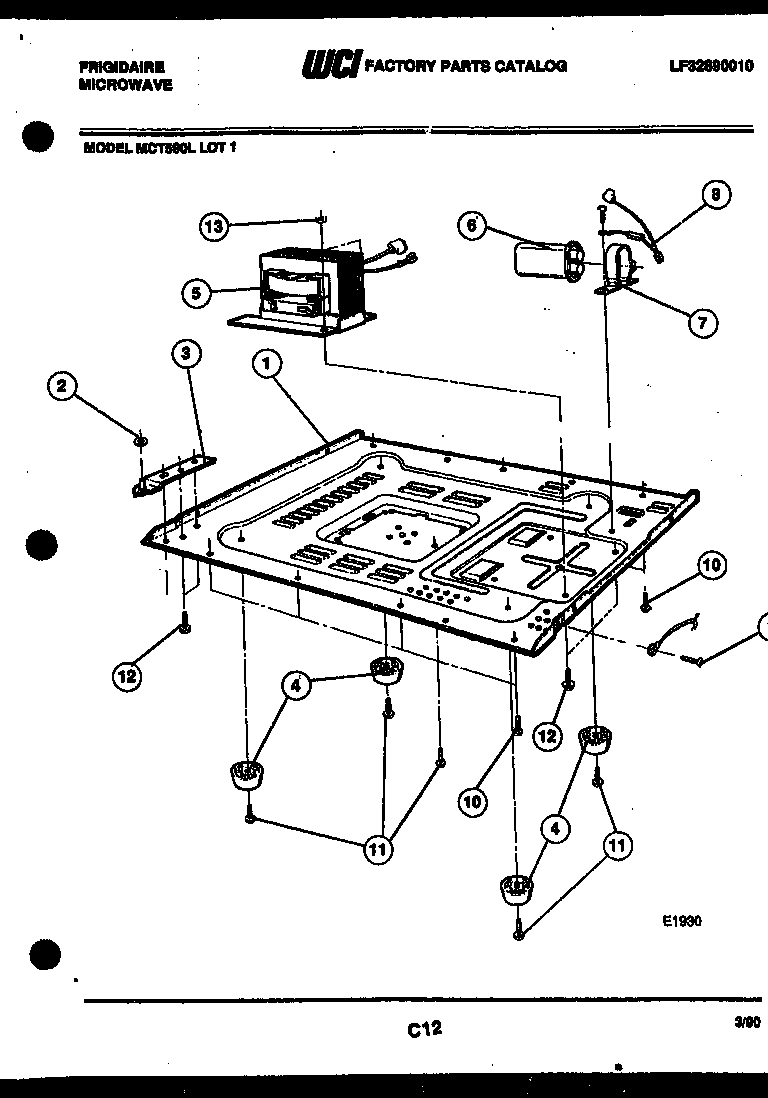

MCT590L1 04 – BASE PLATE, TRANSFORMER AND CAPACIT

Products

PositionProduct
1WCI 5303210043
2WCI 08037558
3WCI 5303208720
4FOOT (2)
5WCI 5303208722
6WCI 5303209257
7WCI 5303208725
8WCI 5303208724
9SCREW TRUSS HEAD(16)
10131243700 Frigidaire Screw
11SCREW-TRUSS HEAD TP(2)
12SCREW – G
13WCI 5303208732
