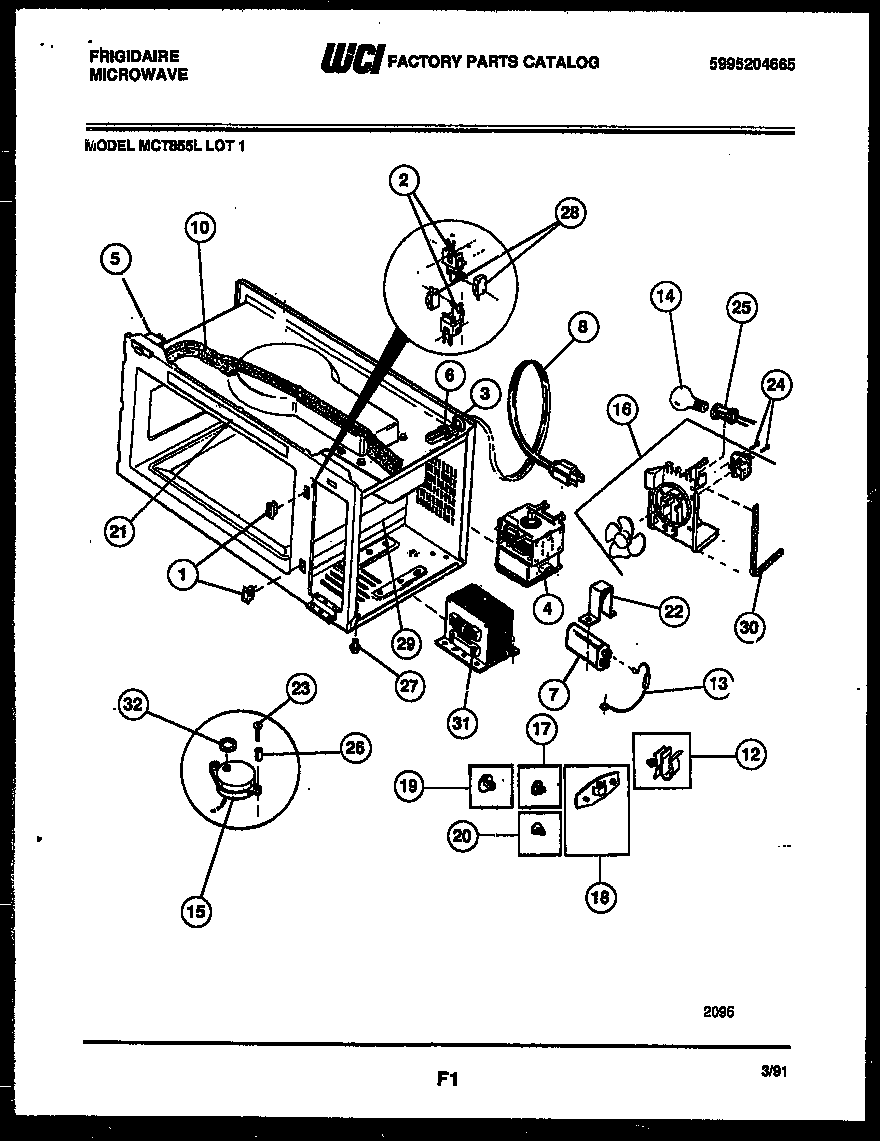

MCT855L1 04 – FUNCTIONAL PARTS

Written by

Products

Position	Product
*42773	WCI 5303269631
*42773	216273000 Frigidaire Refrigerator Strap
*42773	5303321319 Frigidaire Refrigerator White Touch Up Paint
*42773	WCI 5303017865
*42773	WCI 5303212796
*42773	WCI 5303203239
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	WCI 5303212773
8	WCI 5303212774
10	WCI 5303212783
12	WCI 5303212787
13	WCI 5303212799
14	LAMP-120V
15	WCI 5303203150
16	WCI 5303922053
17	PLUG-BUTTON
18	PLUG-BUTTON
19	PLUG-BUTTON (8)
20	PLUG-BUTTON TRAY (2)
21	WCI 5303018849
22	WCI 5303513771
23	SCREW – TRIAC
24	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
25	SOCKET, OVEN LAMP, 120V
26	SPACER-MOTOR
27	FOOT (4)
28	WCI 5303203636
29	WCI 5303212845
30	SEAL-FOAM CUT TO SIZE
31	WCI 5303212811
32	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
