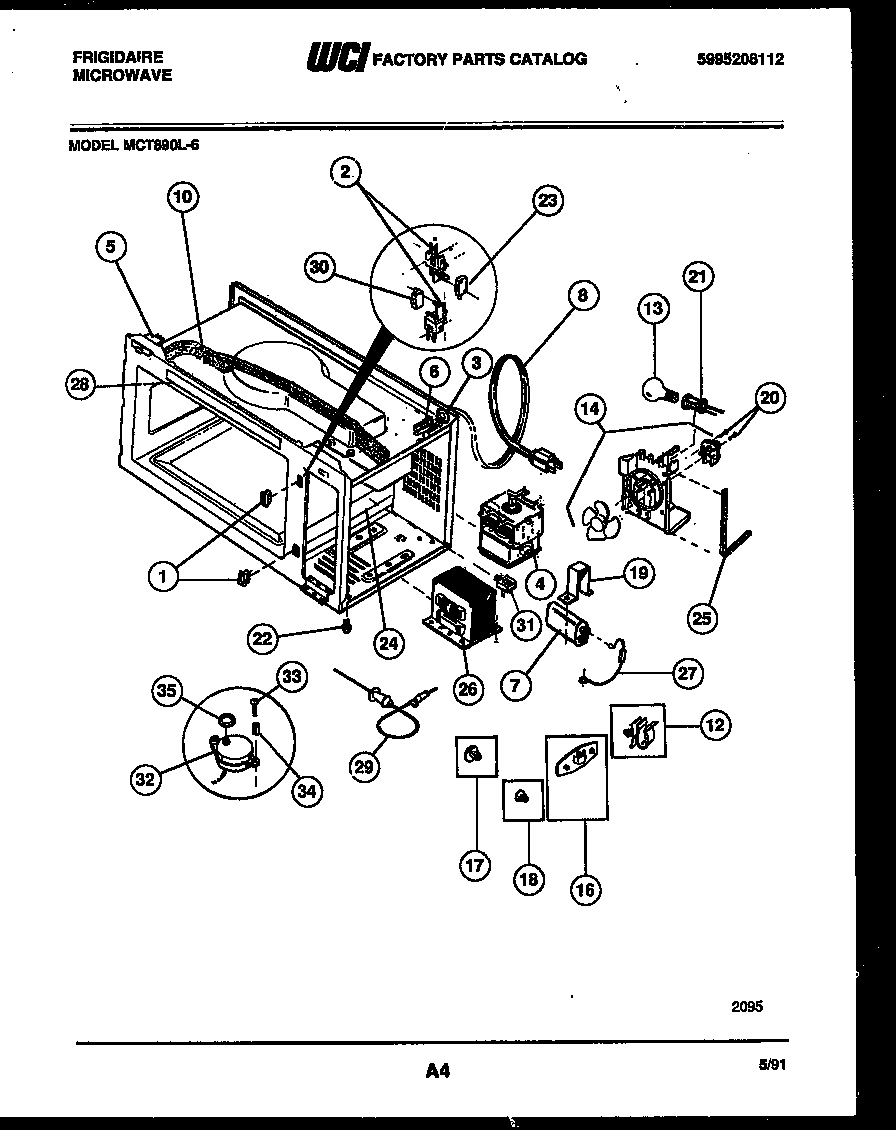

MCT890L6 04 – FUNCTIONAL PARTS

Products

Position	Product
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	WCI 5303212773
8	WCI 5303212774
10	WCI 5303212783
12	WCI 5303212787
13	LAMP-120V
14	WCI 5303922053
16	PLUG-BUTTON
17	PLUG-BUTTON (8)
18	PLUG-BUTTON TRAY (2)
19	WCI 5303013771
20	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
21	SOCKET, OVEN LAMP, 120V
22	FOOT (4)
23	WCI 5303203636
24	WCI 5303212845
25	SEAL-FOAM CUT TO SIZE
26	WCI 5303212811
27	WCI 5303212799
28	WCI 5303018849
29	WCI 5303011684
30	WCI 5308037692
31A	WCI 5303273986
31B	WCI 5303017865
31	WCI 5303013702
31C	216273000 Frigidaire Refrigerator Strap
31D	NUT
31E	WCI 5303204540
32	WCI 5303212920
33	SCREW - TRIAC
34	SPACER-MOTOR
35	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
