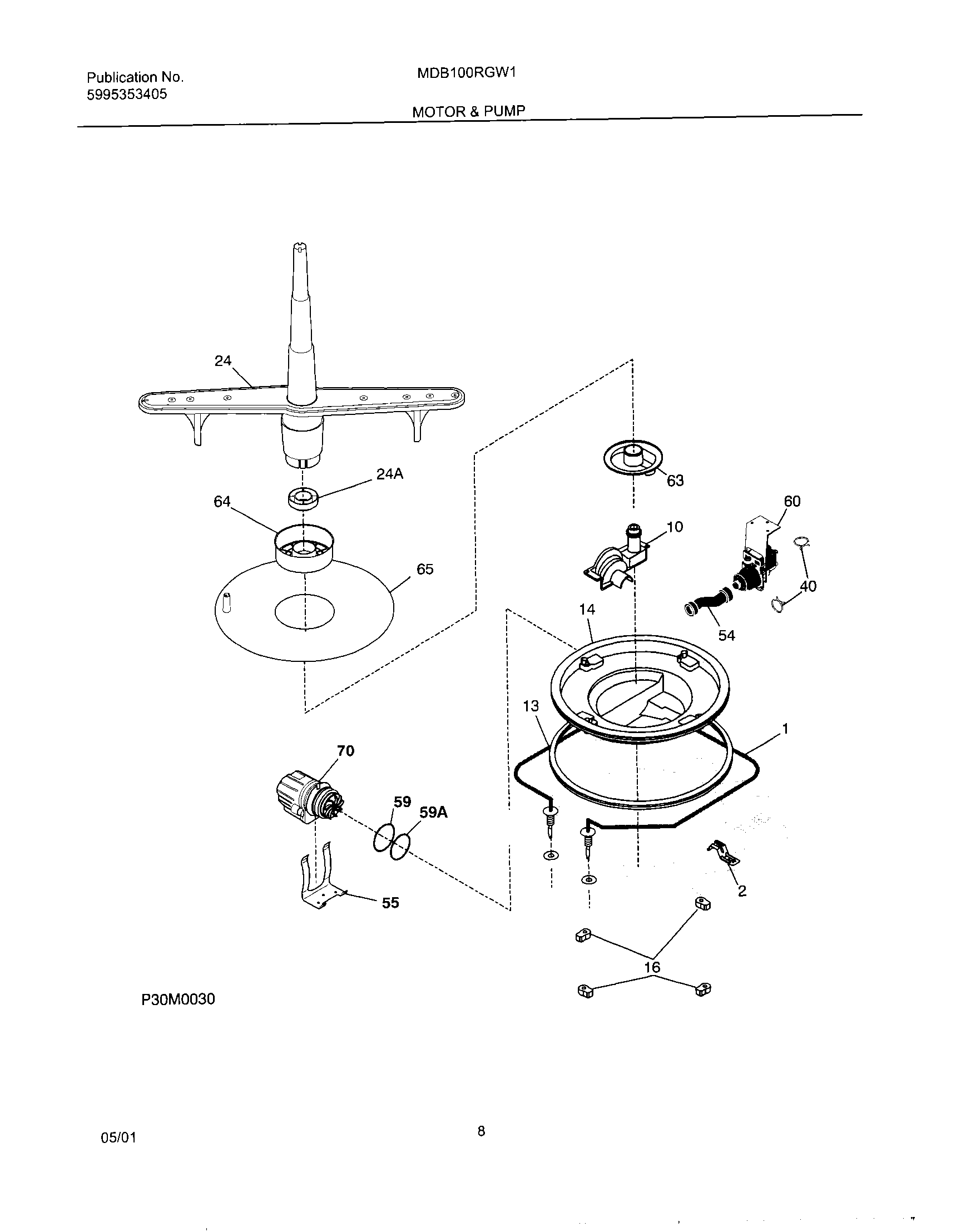

MDB100RGW1 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154200601
NI	WCI 154338601
NI	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
NI	WCI 5303316032
NI	154611101 Frigidaire Dishwasher Clamp
NI	154289801 Frigidaire Dishwasher Shield
NI	154106202 Frigidaire Dishwasher Heater Nut
1	WCI 154336401
2	WCI 154359701
10	WCI 154335301
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154365903
16	154246502 Frigidaire Dishwasher Bracket
24	154335201 Frigidaire Dishwasher Lower Spray Arm Nut
24	5304518927 Frigidaire Dishwasher Lower Wash Spray Arm
40	WCI 154348501
40	154348401 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	5304534830 Frigidaire Dishwasher Bracket
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	WCI 154247502
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
70	MOTOR KIT W HARNESS
