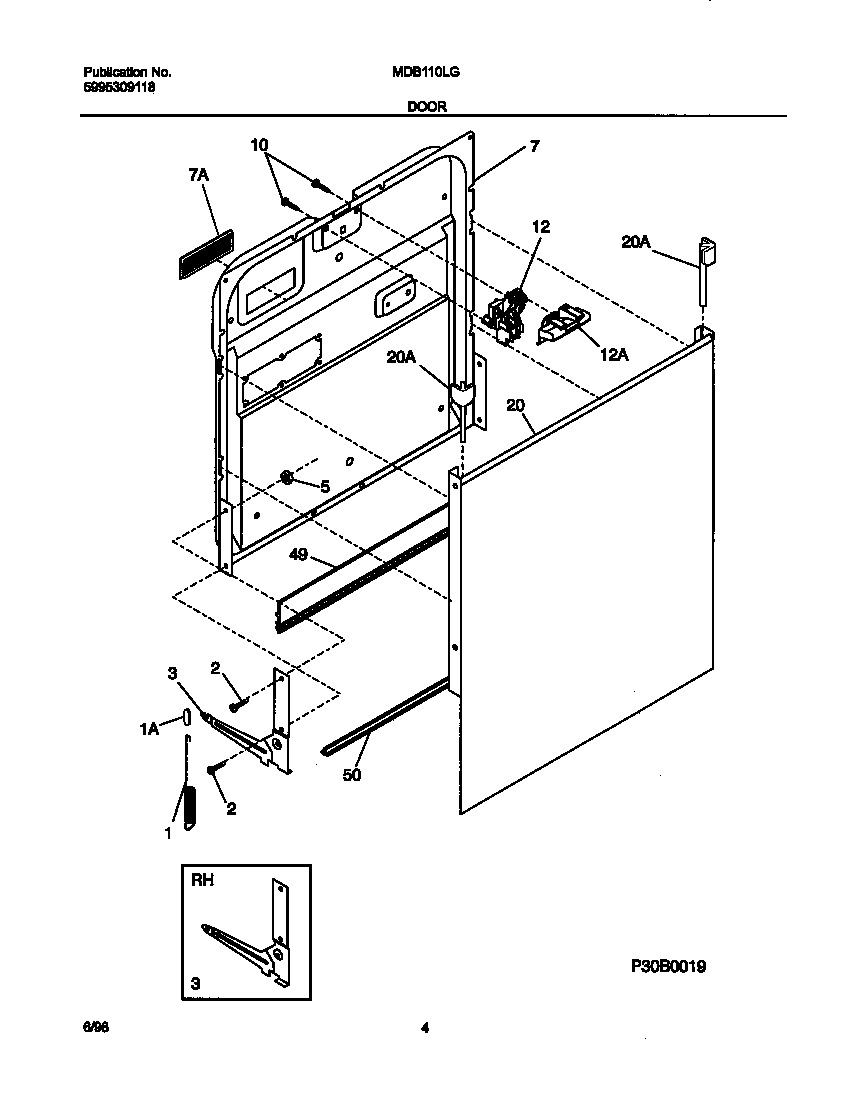

MDB110LGW0 03 – DOOR

MDB110LGW0 03 – DOOR

Written by

in

MDB110LGW0 03 – DOOR

Products

PositionProduct
*27885154419403 Frigidaire Dishwasher Screw
*27883PIN-ARM (NOT ILLUSTRATED)
*27884WCI 154200601
1154430501 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154332701
7WCI 154299003
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154339901
20WCI 154346601
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
