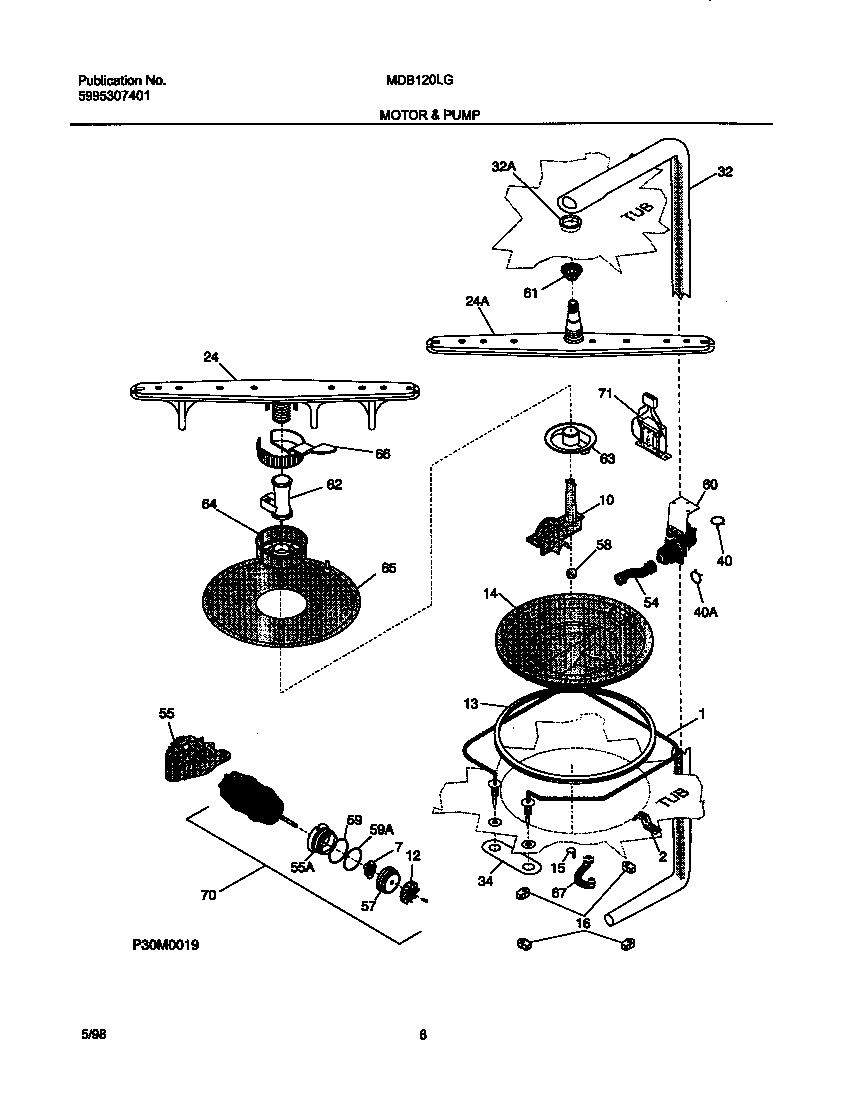

MDB120LGR0 05 – MOTOR & PUMP

MDB120LGR0 05 – MOTOR & PUMP

Written by

in

MDB120LGR0 05 – MOTOR & PUMP

Products

PositionProduct
*19772154289801 Frigidaire Dishwasher Shield
*19771154106202 Frigidaire Dishwasher Heater Nut
*19782154754901 Frigidaire Dishwasher Screw
*19780WCI 154247201
*19781WCI 154247401
*19773SCREW, SS IMPELLER (NOT ILLUSTRATED)
*19783WCI 154329001
*19775WCI 154246101
*19776BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*19778154241101 Frigidaire Dishwasher Retainer
*19784WCI 5303316032
*19774WCI 154252001
*19777WCI 154200601
*19779CLAMP, HOSE
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251601
32WCI 154251701
34WCI 154064901
40154348401 Frigidaire Dishwasher Clamp
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247502
61WCI 154250101
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
