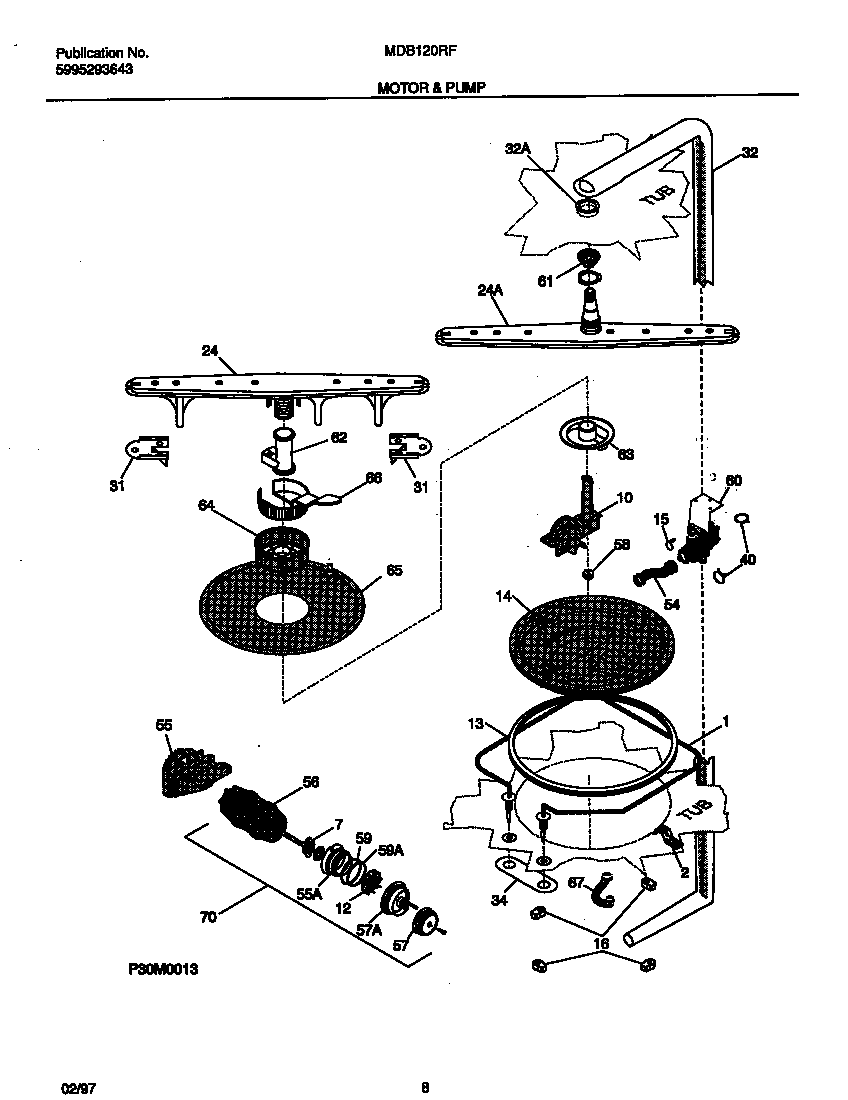

MDB120RFM2 05 – MOTOR & PUMP

Products

Position	Product
*17166	WCI 154247201
*17168	WCI 154247401
*17167	154348401 Frigidaire Dishwasher Clamp
*17169	WCI 5303316032
*17165	CLAMP, HOSE
1	154106202 Frigidaire Dishwasher Heater Nut
1	154665201 Frigidaire Dishwasher Heater
1	154289801 Frigidaire Dishwasher Shield
2	WCI 154211001
7	WCI 154245901
10	807145201 Frigidaire Dishwasher Cover-Volute
12	WCI 154245801
12	SCREW, SS IMPELLER (NOT ILLUSTRATED)
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154245401
15	WCI 154246701
16	WCI 154246501
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24	WCI 154252001
24	154313601 Frigidaire Dishwasher Control Arm P1
31	WCI 154281001
32	WCI 154251601
32	WCI 154251701
34	WCI 154064901
40	154611101 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	WCI 154246201
55	WCI 154245601
56	154754901 Frigidaire Dishwasher Screw
56	WCI 154245702
57	WCI 154246001
57	WCI 154246101
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	WCI 154247501
60	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
61	WCI 154250101
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
67	WCI 154246601
70	WCI 154291501
