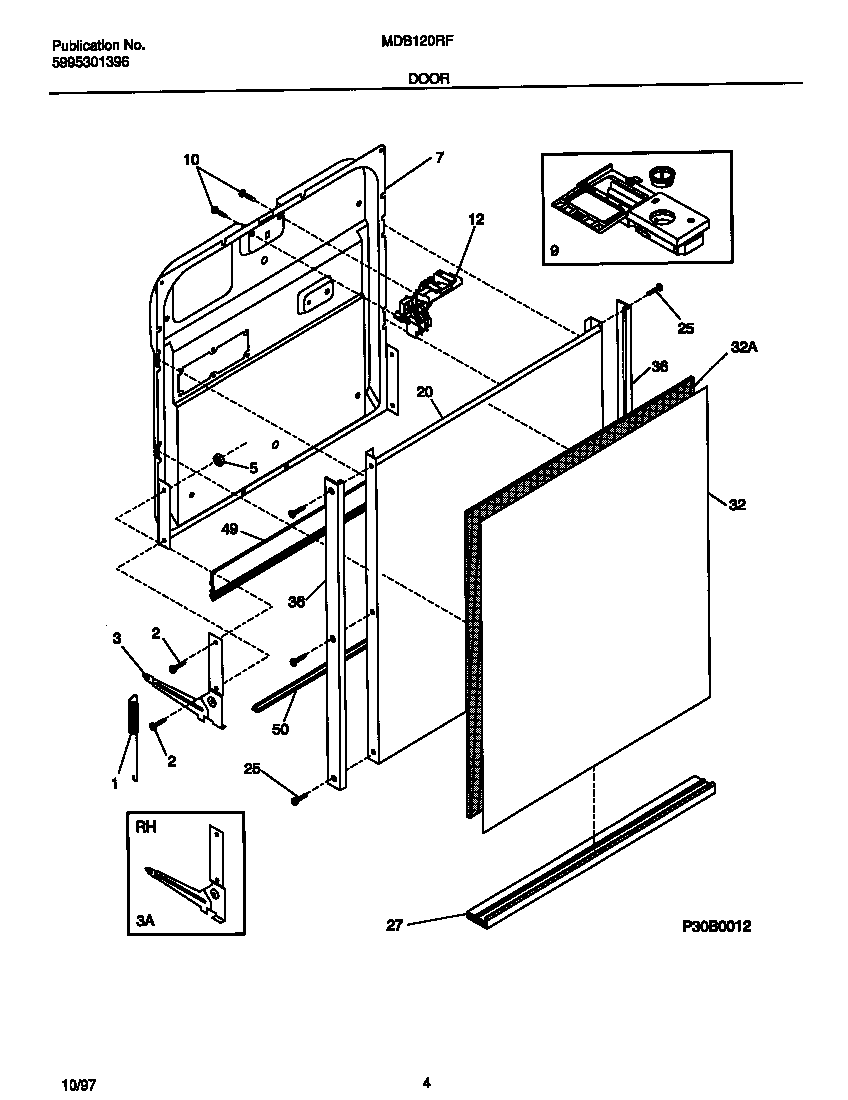

MDB120RFM3 03 – DOOR

MDB120RFM3 03 – DOOR

Written by

in

MDB120RFM3 03 – DOOR

Products

PositionProduct
*97604PIN-ARM (NOT ILLUSTRATED)
*97605WCI 154298101
*97606SCREW-8 X 5/8“ (2)
*97607154419403 Frigidaire Dishwasher Screw
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
25WCI 154200601
27WCI 154309504
32WCI 154229001
32WCI 5303943148
36WCI 154309304
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
