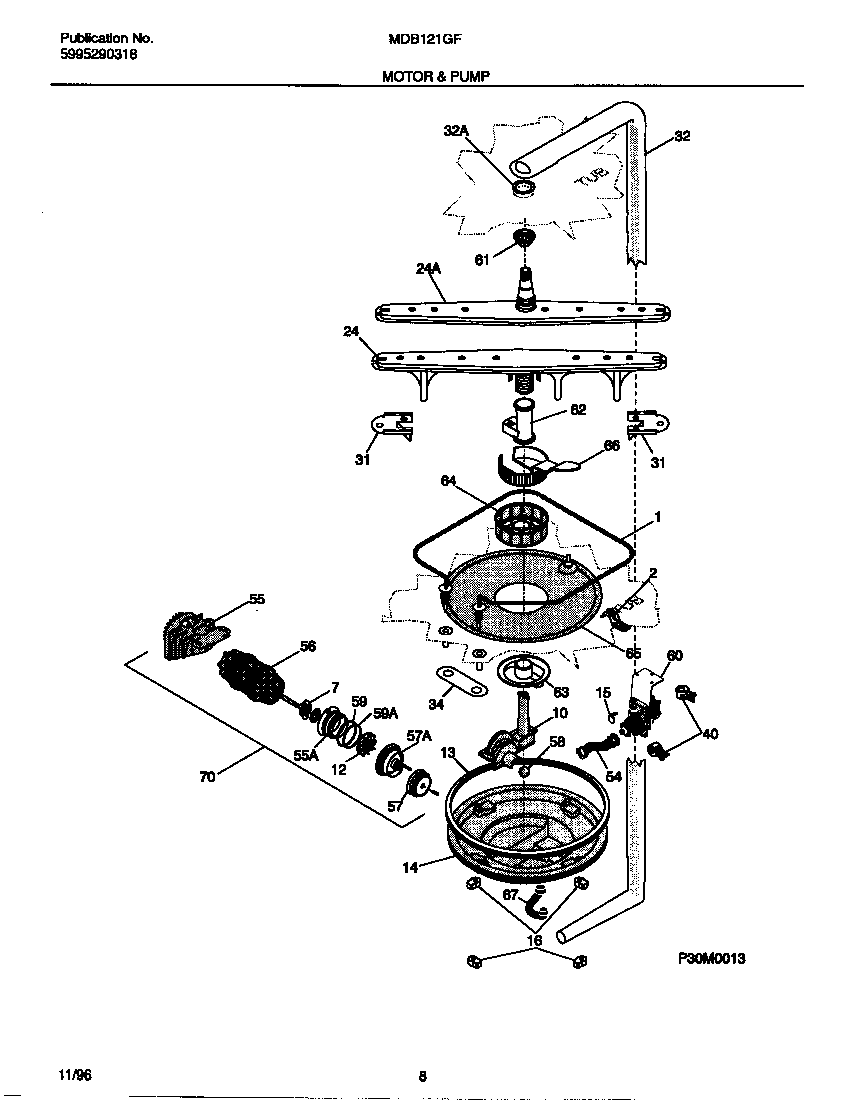

MDB121GFR1 05 – MOTOR & PUMP

Products

Position	Product
*16094	SCREW
*16092	154348401 Frigidaire Dishwasher Clamp
*16091	WCI 154247201
*16093	WCI 154247401
*16095	WCI 5303316032
*16090	CLAMP, HOSE
1	154665201 Frigidaire Dishwasher Heater
1	154289801 Frigidaire Dishwasher Shield
1	154106202 Frigidaire Dishwasher Heater Nut
2	WCI 154211001
7	WCI 154245901
10	807145201 Frigidaire Dishwasher Cover-Volute
12	SCREW, SS IMPELLER (NOT ILLUSTRATED)
12	WCI 154245801
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154245401
15	WCI 154246701
16	WCI 154246501
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24	154313601 Frigidaire Dishwasher Control Arm P1
24	WCI 154252001
31	WCI 154281001
32	WCI 154251601
32	WCI 154251701
34	WCI 154064901
40	154611101 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	WCI 154246201
55	WCI 154245601
56	154754901 Frigidaire Dishwasher Screw
56	WCI 154245701
57	WCI 154246001
57	WCI 154246101
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
60	WCI 154247501
60	WCI 154200901
61	WCI 154250101
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
67	WCI 154246601
70	WCI 154291501
