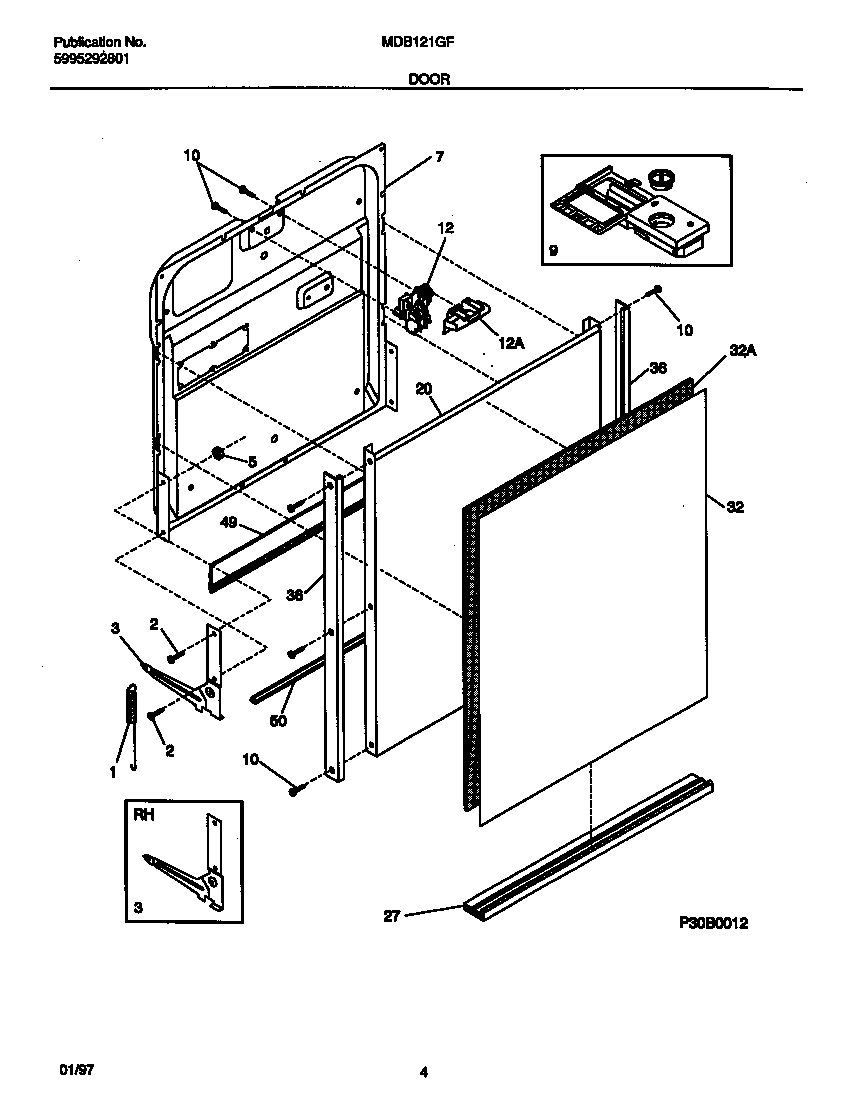

MDB121GFR2 03 – DOOR

Products

Position	Product
*16804	SCREW-8 X 5/8“ (2)
*16803	WCI 154200601
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	WCI 154298101
3	PIN-ARM (NOT ILLUSTRATED)
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
12	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	154103702 Frigidaire Dishwasher Screw
20	WCI 154210601
27	WCI 154257604
32	WCI 154229001
32	WCI 154229101
32	WCI 154229102
36	WCI 154254204
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
