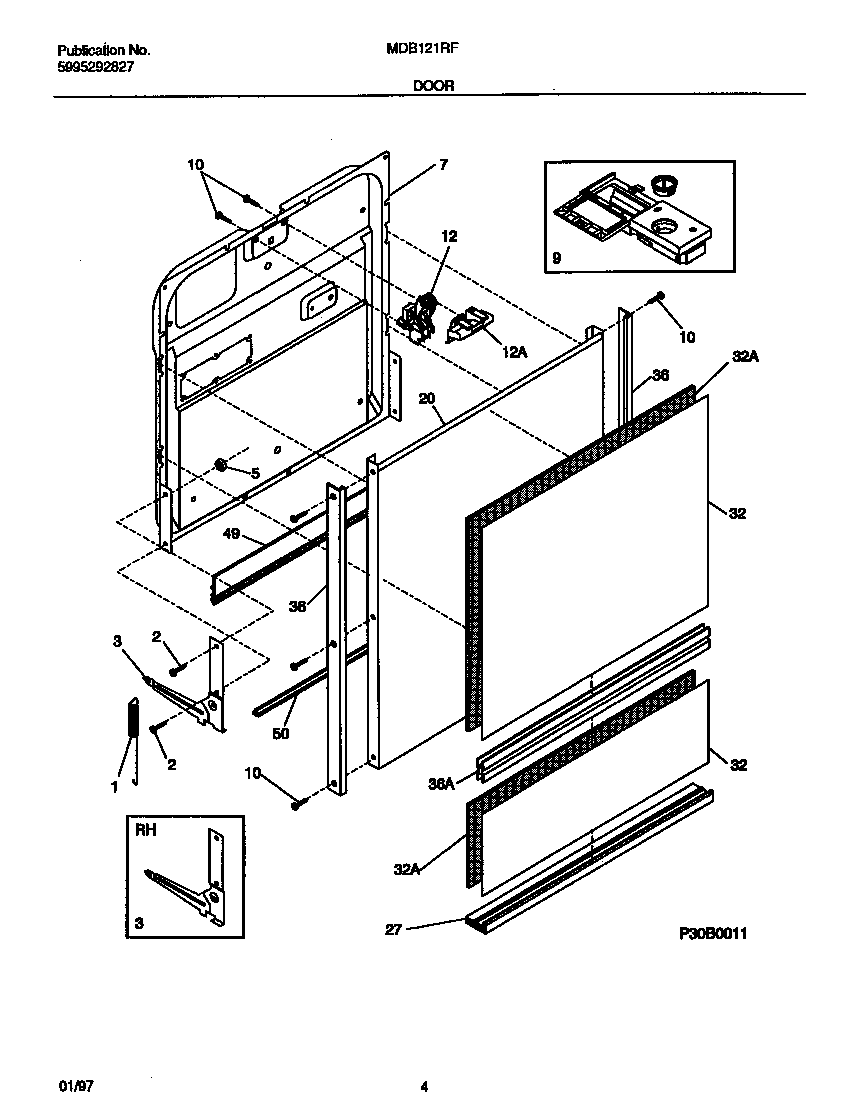

MDB121RFM2 03 – DOOR

Products

Position	Product
*68002	WCI 154200601
*68003	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3D	WCI 154298101
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
3C	PIN-ARM (NOT ILLUSTRATED)
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12A	5304442175 Frigidaire Black Door Latch Assembly
12B	154103702 Frigidaire Dishwasher Screw
12C	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
20	WCI 154210601
27	WCI 154257604
32A	WCI 154229002
32B	WCI 154229106
32A	WCI 154229104
32	WCI 154229105
32B	WCI 154229003
36	WCI 154254504
36	WCI 154254204
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
