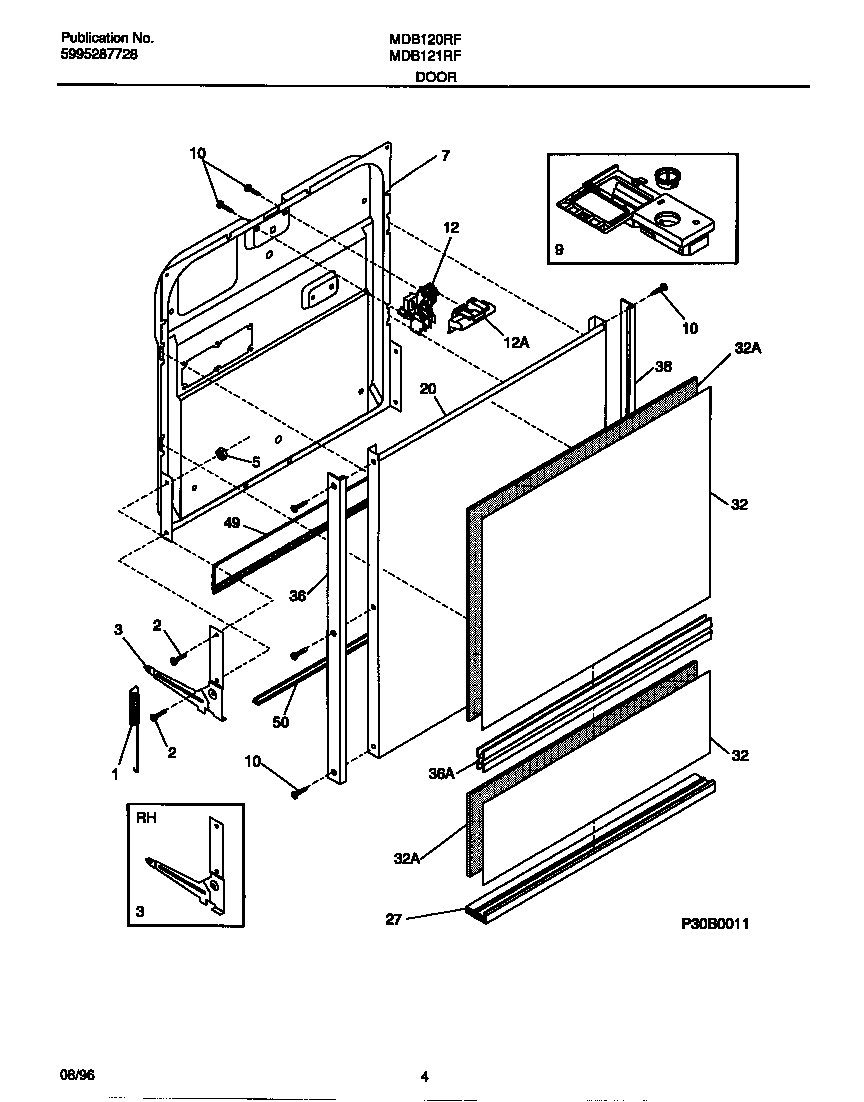

MDB121RFS0 03 – DOOR

MDB121RFS0 03 – DOOR

Written by

in

MDB121RFS0 03 – DOOR

Products

PositionProduct
*62403WCI 154200501
*62404WCI 154200601
*62405SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3CPIN-ARM (NOT ILLUSTRATED)
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154210501
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257601
32WCI 154229104
32BWCI 154229106
32AWCI 154229105
32WCI 154229103
32BWCI 154229003
32AWCI 154229002
36WCI 154254504
36WCI 154254201
49WCI 154244701
50WCI 154211401
