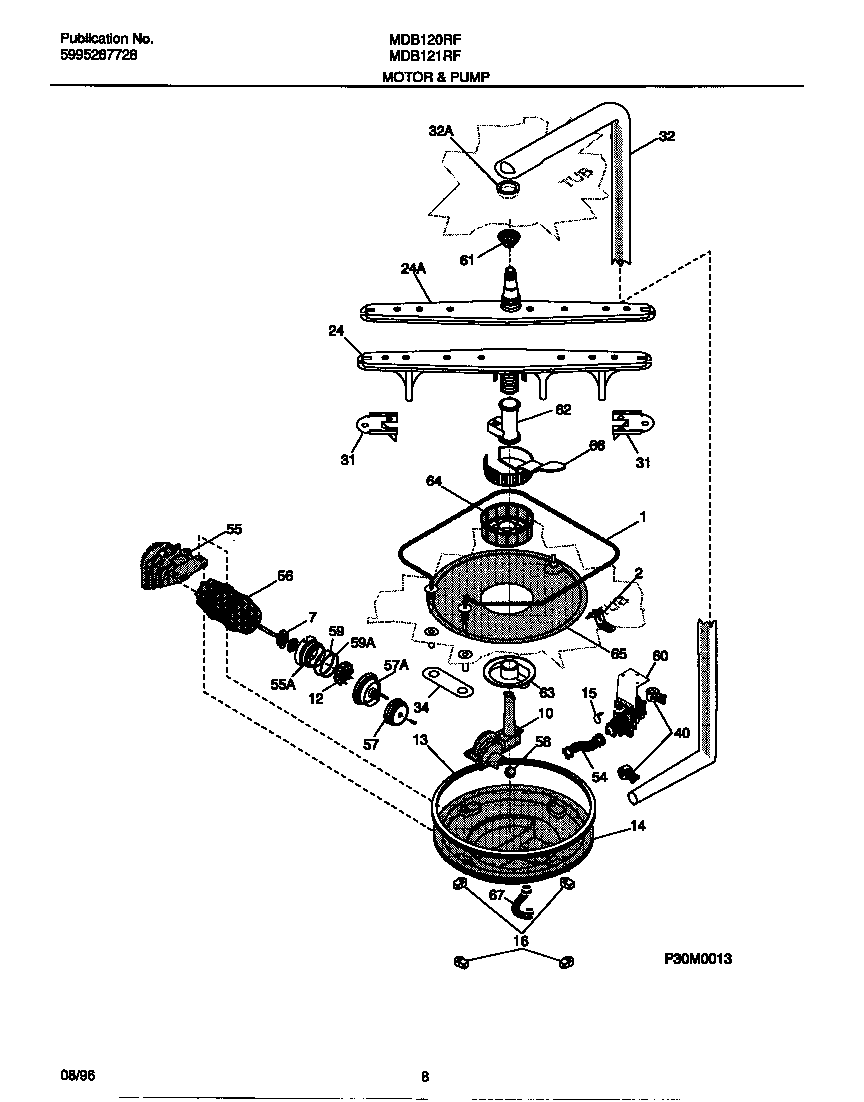

MDB121RFS0 05 – MOTOR & PUMP

MDB121RFS0 05 – MOTOR & PUMP

Written by

in

MDB121RFS0 05 – MOTOR & PUMP

Products

PositionProduct
*62412SCREW
*62411WCI 154247401
*62409WCI 154247201
*62410154348401 Frigidaire Dishwasher Clamp
*62413WCI 5303316032
*62414WCI 154291501
*62408CLAMP, HOSE
1A154665201 Frigidaire Dishwasher Heater
1C154289801 Frigidaire Dishwasher Shield
1B154106202 Frigidaire Dishwasher Heater Nut
2WCI 154211001
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12BSCREW, SS IMPELLER (NOT ILLUSTRATED)
12AWCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
24A5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24154313601 Frigidaire Dishwasher Control Arm P1
24BWCI 154252001
31WCI 154281001
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56B154754901 Frigidaire Dishwasher Screw
56AWCI 154245701
57WCI 154246101
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60CBRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
60AWCI 154247501
60BWCI 154200901
61WCI 154250101
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
