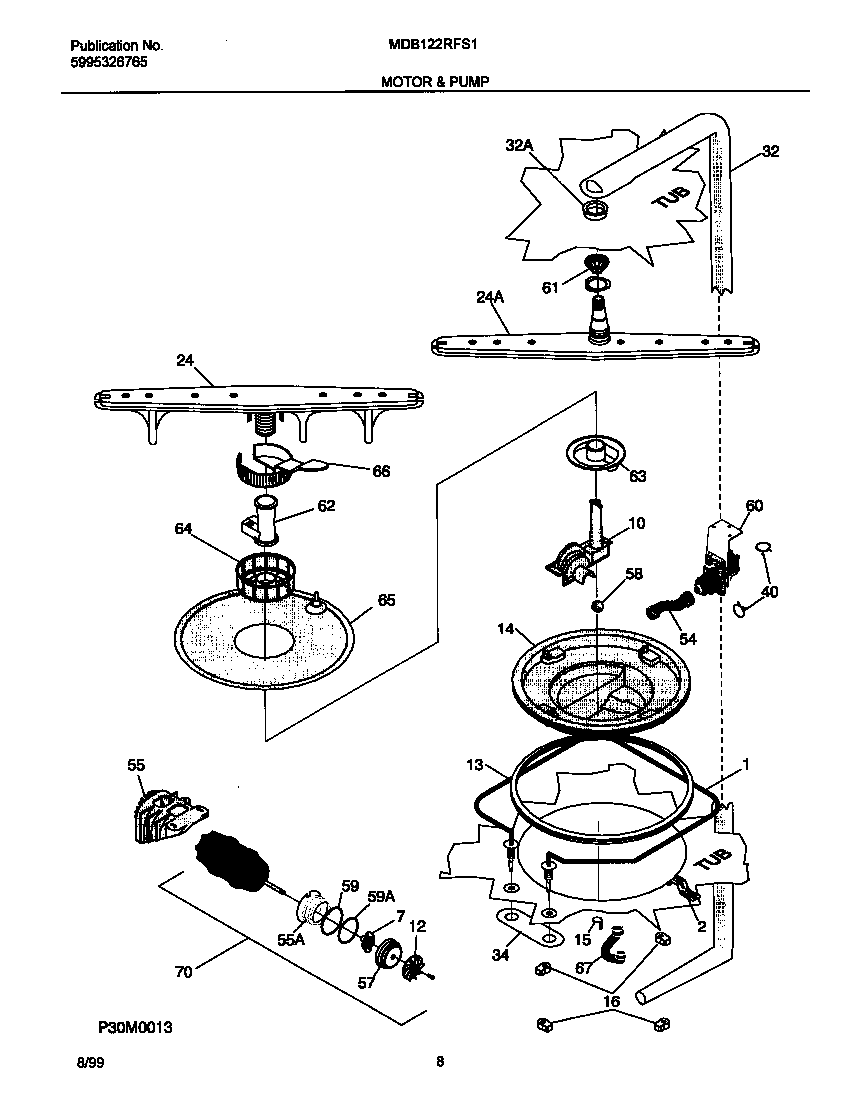

MDB122RFS1 05 – MOTOR

MDB122RFS1 05 – MOTOR

Written by

in

MDB122RFS1 05 – MOTOR

Products

PositionProduct
*15773WCI 5303316032
*15771154106202 Frigidaire Dishwasher Heater Nut
*15772154289801 Frigidaire Dishwasher Shield
*15780154754901 Frigidaire Dishwasher Screw
*15777WCI 154348501
*15774SCREW, SS IMPELLER (NOT ILLUSTRATED)
*15776154348401 Frigidaire Dishwasher Clamp
*15778WCI 154246101
*15783WCI 154338601
*15779BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*15782WCI 154329001
*15781WCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24WCI 154252001
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24154313601 Frigidaire Dishwasher Control Arm P1
32154406401 Frigidaire Delivery Tube Gasket
32WCI 154251701
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154325701
55WCI 154246201
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
61WCI 154359501
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
