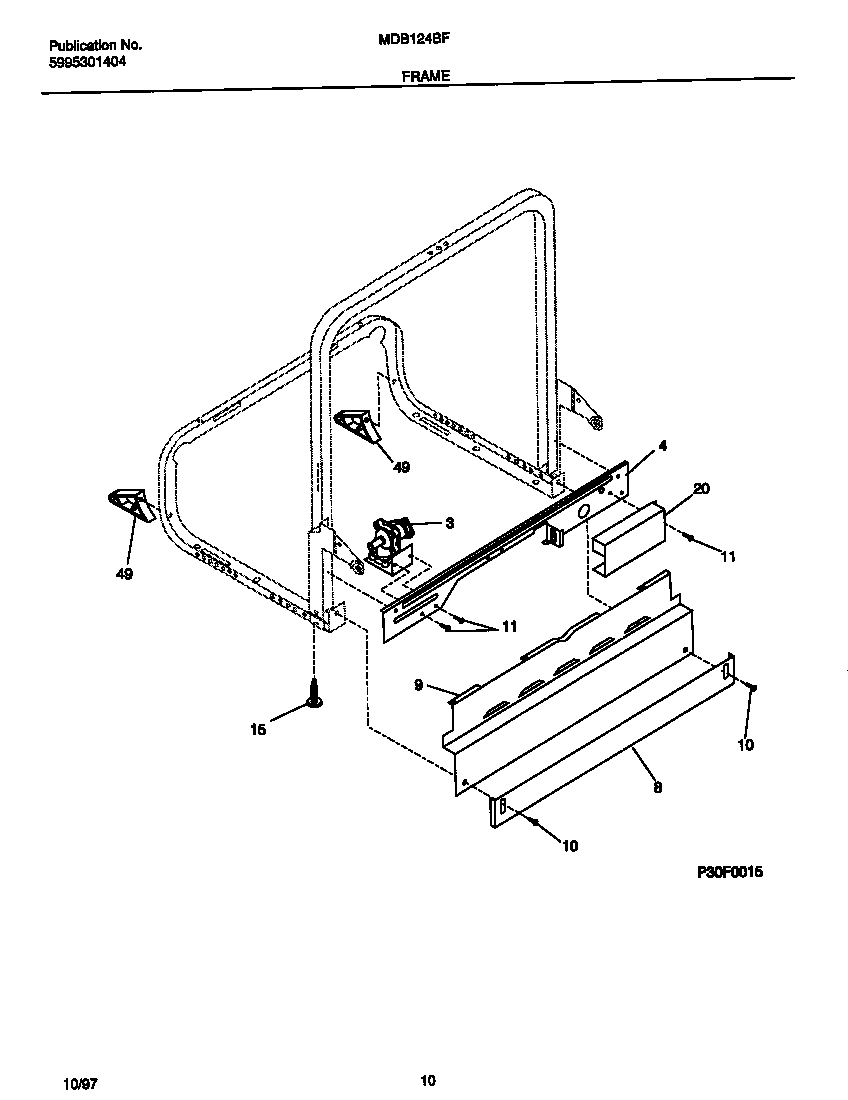

MDB124BFS2 06 – FRAME

MDB124BFS2 06 – FRAME

Written by

in

MDB124BFS2 06 – FRAME

Products

PositionProduct
*87536808690701 Frigidaire Dishwasher Screw
*87537WCI 5300807270
*875385300807373 Frigidaire WASHER
*87539SCREW-8 X 5/8“ (2)
3154637401 Frigidaire Dishwasher Fill Valve Water
45304508587 Frigidaire Dishwasher Brace
8154745503 Frigidaire Dishwasher Toe Panel
95304501484 Frigidaire Dishwasher Assembly Toekick Plate
10154419403 Frigidaire Dishwasher Screw
11154294701 Frigidaire Dishwasher Screw
15WCI 154210901
20WCI 154209601
49WCI 154227401
