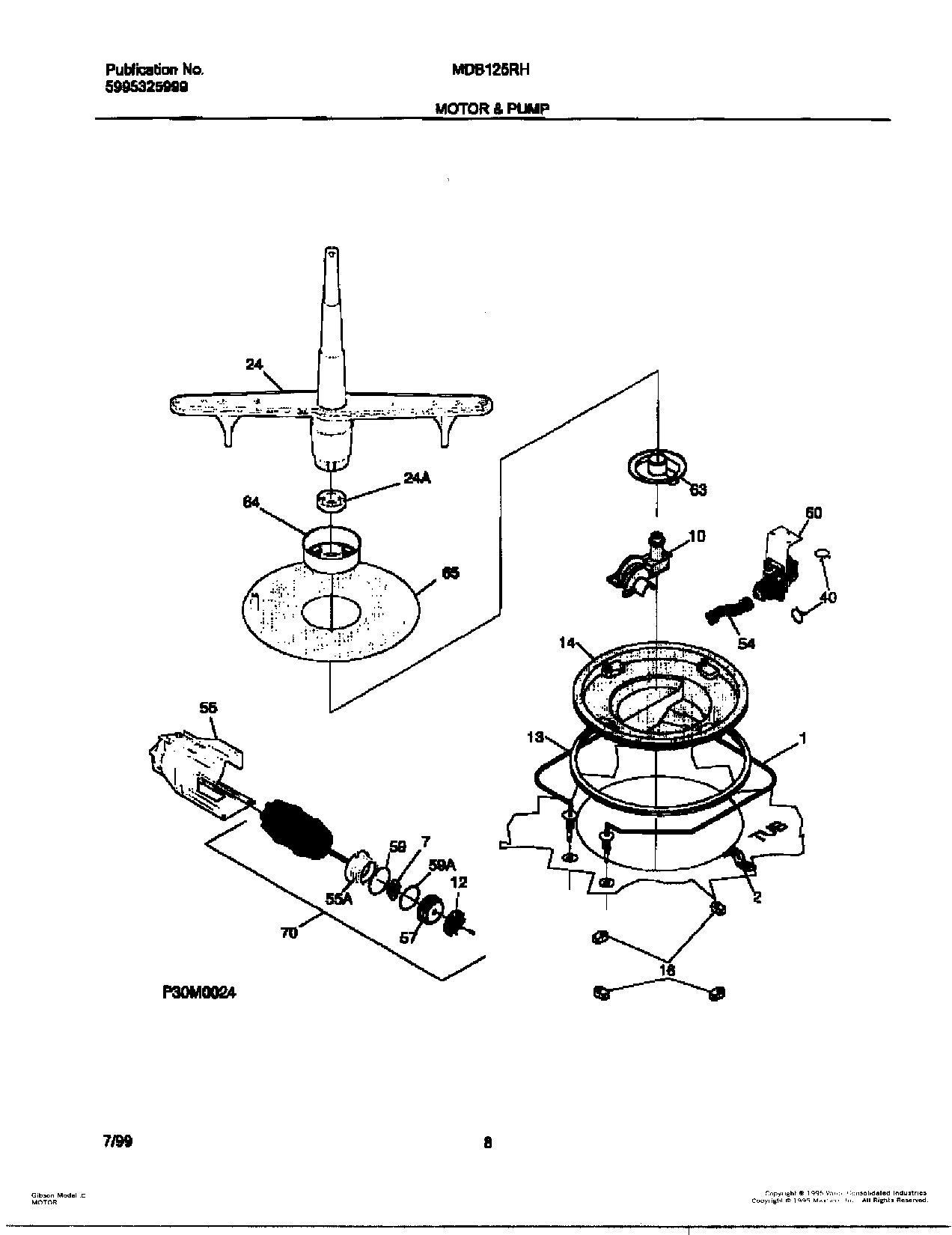

MDB125RHB0 05 – MOTOR

MDB125RHB0 05 – MOTOR

Written by

in

MDB125RHB0 05 – MOTOR

Products

PositionProduct
*86218WCI 154200601
*86214154348401 Frigidaire Dishwasher Clamp
*86212154289801 Frigidaire Dishwasher Shield
*86211154106202 Frigidaire Dishwasher Heater Nut
*86213SCREW, SS IMPELLER (NOT ILLUSTRATED)
*86216WCI 154246101
*86217BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*86219WCI 154338601
*86220WCI 5303316032
*86215WCI 154348501
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10WCI 154335301
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335402
16154246502 Frigidaire Dishwasher Bracket
24154335201 Frigidaire Dishwasher Lower Spray Arm Nut
245304518927 Frigidaire Dishwasher Lower Wash Spray Arm
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154325701
57WCI 154246001
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
