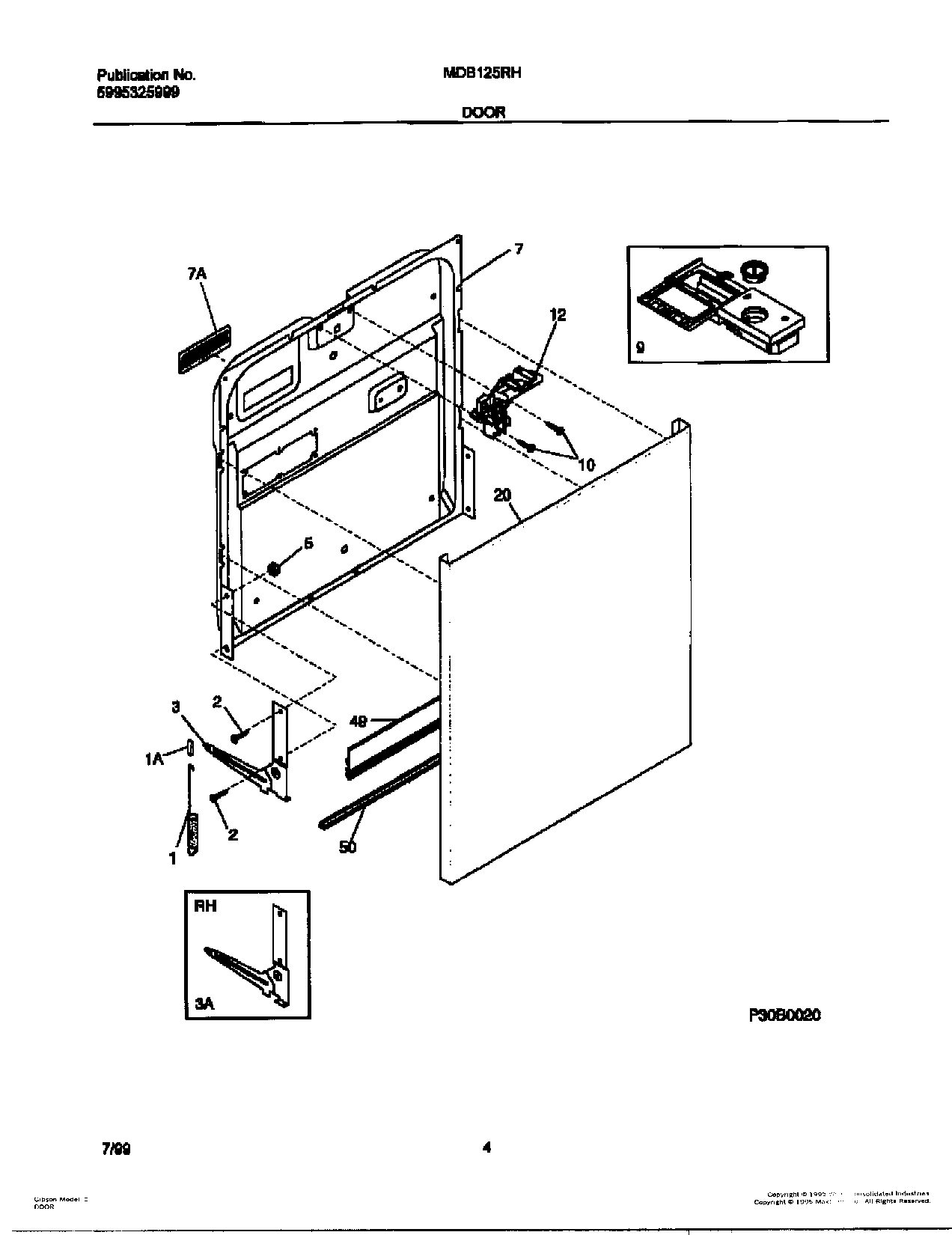

MDB125RHD0 03 – DOOR

MDB125RHD0 03 – DOOR

Written by

in

MDB125RHD0 03 – DOOR

Products

PositionProduct
*86204154294701 Frigidaire Dishwasher Screw
*86203PIN-ARM (NOT ILLUSTRATED)
*86205WCI 154320301
*86207INSULATION,DOOR
*86206WCI 154200601
1154325201 Frigidaire Linkage Spring
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
7WCI 154332701
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359106
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
