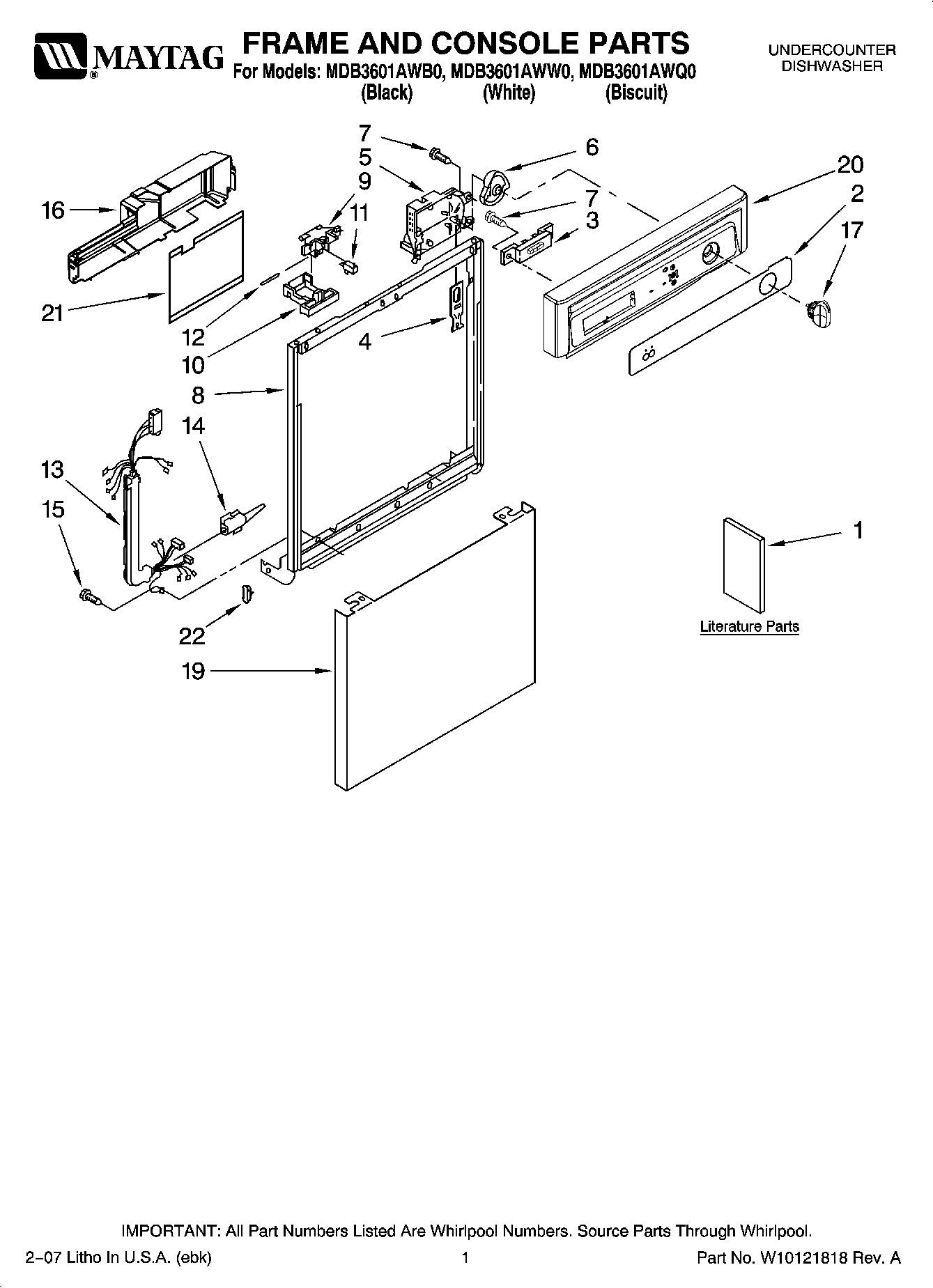

MDB3601AWB0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	Do-It Yourself Manual
1	MAY W10102583
1	MAY 8535436
1	MAY W10102585
1	MAY 3385497
1	Instructions, Installation (Supplement) (Location Your Water Supply)
2	MAY W10102620
2	MAY W10102621
2	MAY W10102622
3	Switch
4	MAY 3369529
5	MAY 8535368
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	MAY 3384155
10	MAY 3380778
10	MAY 3380779
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573183
14	MAY 3376405
15	MAY 3400892
16	Cover, Control
17	MAY 3379291
17	MAY 3379290
17	MAY 3384821
19	Panel, Front (Biscuit)
19	Front Panel (White)
19	FRONT PANEL (BLACK)
20	MAY W10102614
20	MAY W10102615
20	MAY W10102616
21	MAY 3379671
22	Bearing, Spring, (2)
