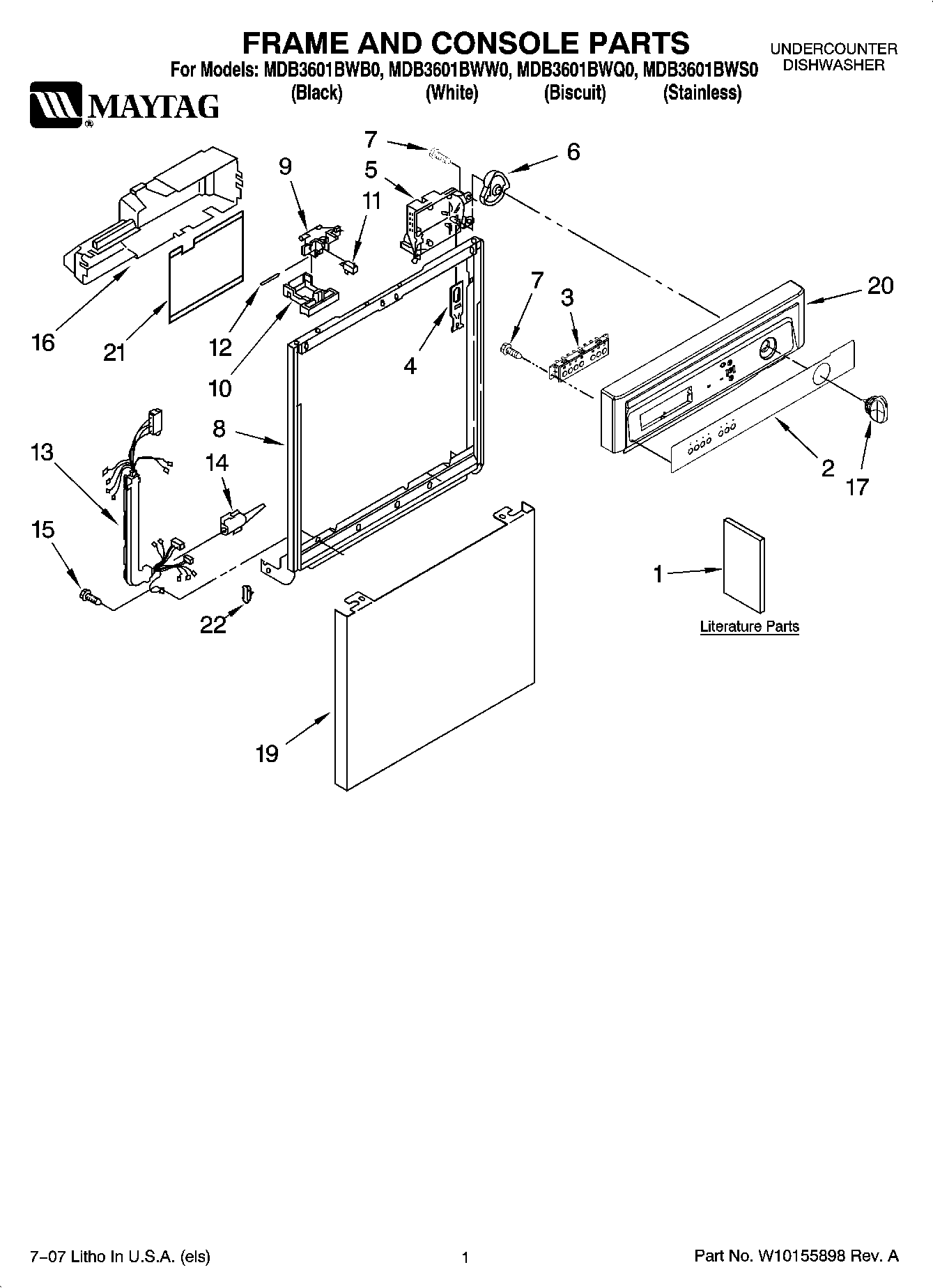

MDB3601BWQ0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY 3385497
1	MAY W10102585
1	MAY 8535436
1	MAY W10133201
2	MAY W10133194
2	MAY W10133193
2	MAY W10133195
3	Switch
4	MAY 3369529
5	MAY W10039480
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	MAY 3384155
10	MAY 3380779
10	MAY 3380778
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573183
14	MAY 3376405
15	MAY 3400892
16	Cover, Control
17	MAY 3384821
17	MAY 3379291
17	MAY 3379290
19	FRONT PANEL (BLACK)
19	Front Panel (White)
19	Panel, Front (Biscuit)
19	MAY 9743581
20	MAY W10142868
20	MAY W10142869
20	MAY W10142870
21	MAY 3379671
22	Bearing, Spring, (2)
