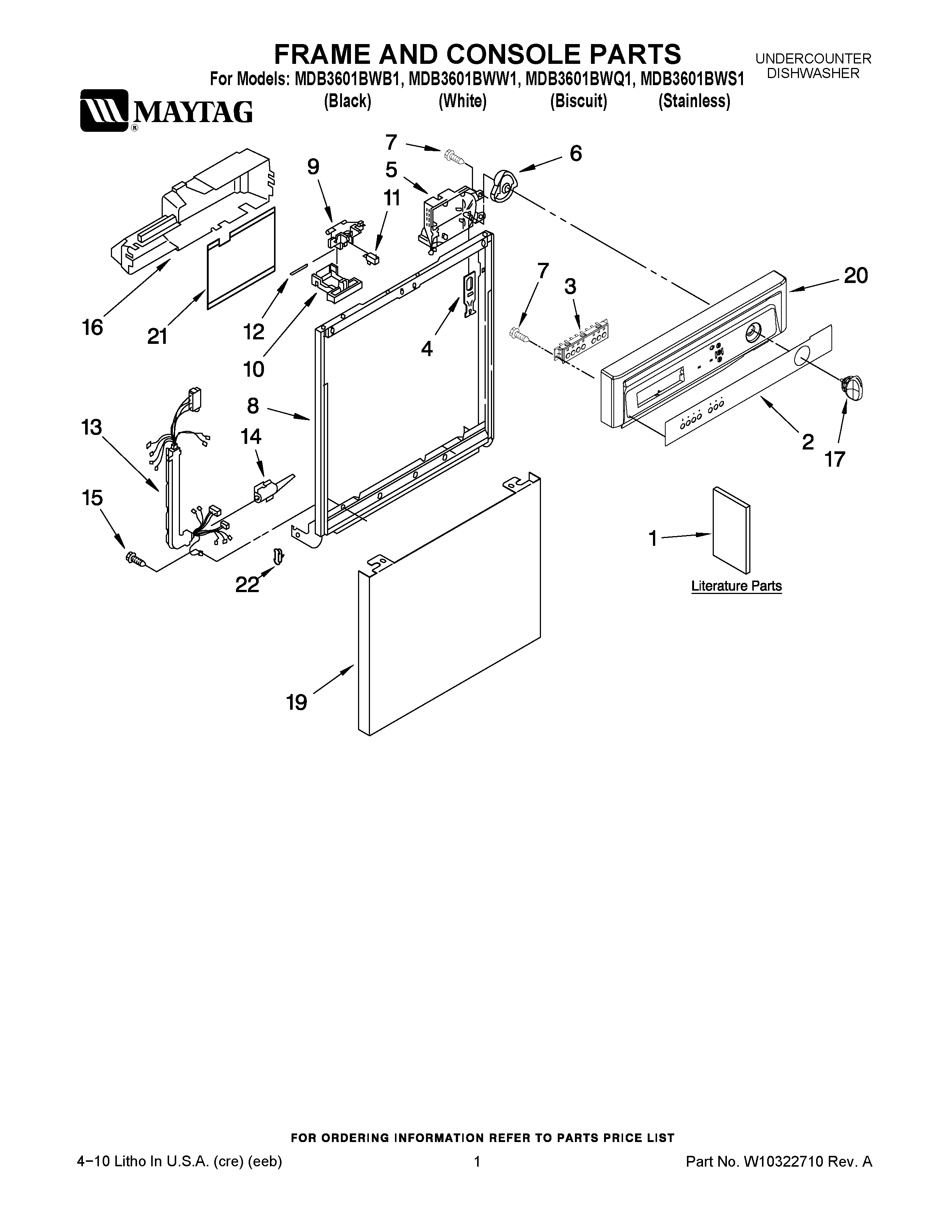

MDB3601BWQ1 01 – FRAME AND CONSOLE PARTS
Written by
in
MDB3601BWQ1 01 – FRAME AND CONSOLE PARTS
Products
Position
Product
1
MAY W10254974
1
MAY 3385497
1
MAY 8535436
1
MAY W10130982
1
MAY W10133157
2
MAY W10133195
2
MAY W10133194
2
MAY W10133193
3
Switch
4
MAY 3369529
5
MAY W10039480
6
MAY 8271510
7
SCREW
8
Door Frame
9
MAY 3380854
10
MAY 3384155
10
MAY 3380779
10
MAY 3380778
11
SWITCH, DOOR
12
MAY 3368955
13
MAY 8573183
14
MAY 3376405
15
MAY 3400892
16
Cover, Control
17
MAY 3379290
17
MAY 3379291
17
MAY 3384821
19
FRONT PANEL (BLACK)
19
Front Panel (White)
19
MAY 9743581
19
Panel, Front (Biscuit)
20
MAY W10142868
20
MAY W10142870
20
MAY W10142869
21
MAY 3379671
22
Bearing, Spring, (2)
←
