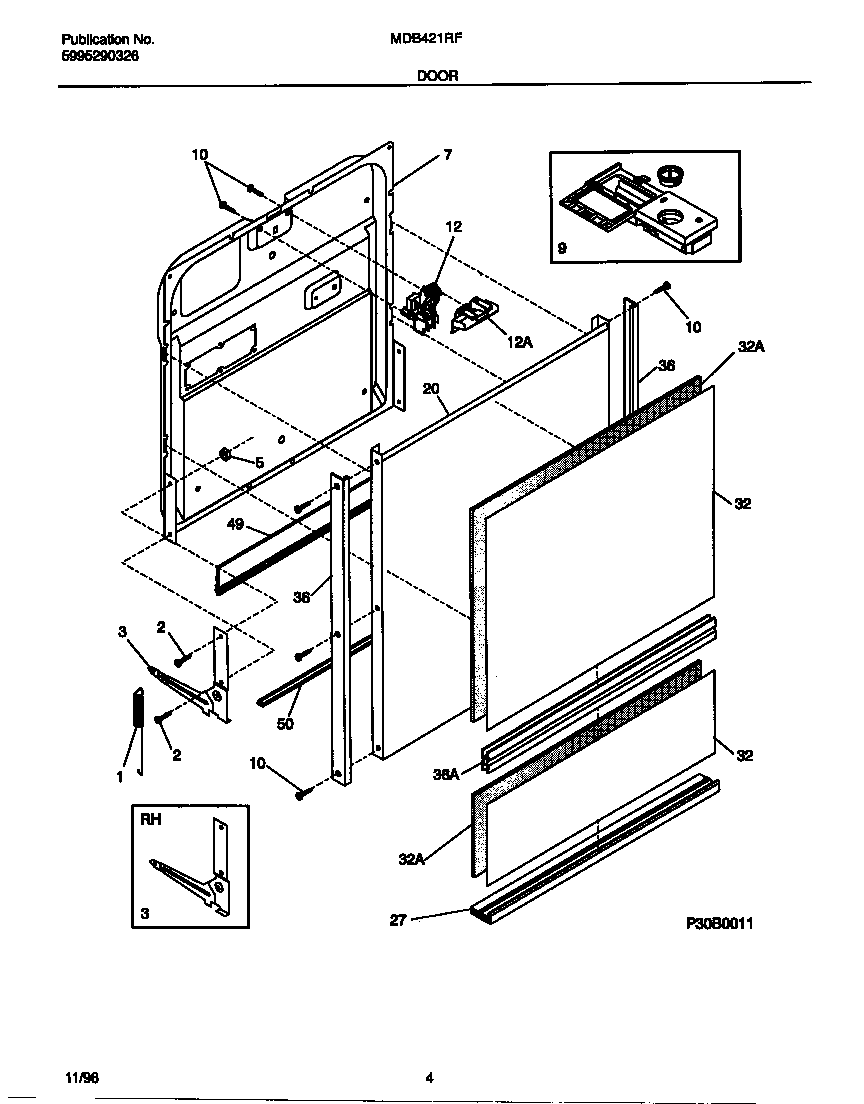

MDB421RFR1 03 – DOOR

Products

Position	Product
*09404	WCI 154200501
*09405	WCI 154200601
*09406	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3C	PIN-ARM (NOT ILLUSTRATED)
3D	WCI 154298101
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154210501
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154210601
27	WCI 154257604
32D	WCI 154229106
32C	WCI 154229105
32B	WCI 154229104
32B	WCI 154229003
32A	WCI 154229002
32A	WCI 154229103
36	WCI 154254204
36	WCI 154254504
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
