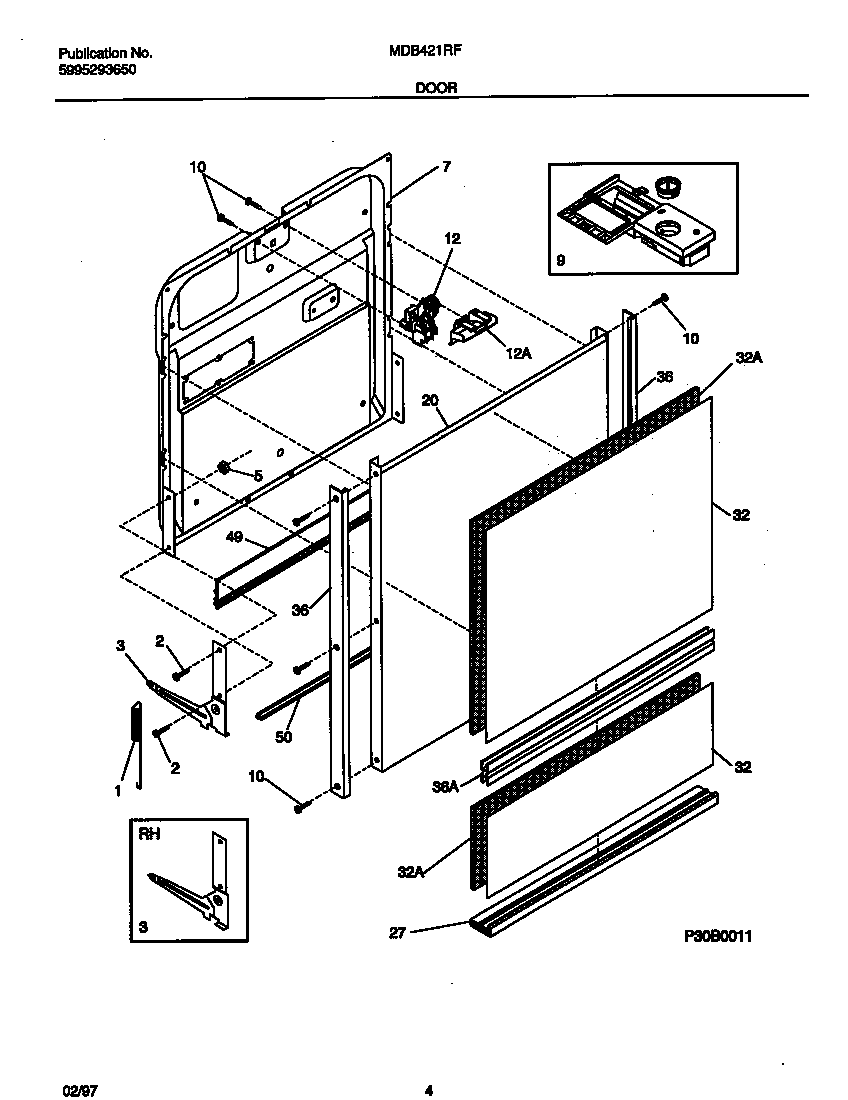

MDB421RFR2 03 – DOOR

MDB421RFR2 03 – DOOR

Written by

in

MDB421RFR2 03 – DOOR

Products

PositionProduct
*37803WCI 154200601
*37804SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3DWCI 154298101
3CPIN-ARM (NOT ILLUSTRATED)
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
12BSCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12A5304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257604
32AWCI 154229115
32AWCI 154229113
32BWCI 154229116
32BWCI 154229114
32BWCI 154229003
32AWCI 154229002
36WCI 154254504
36WCI 154254204
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
