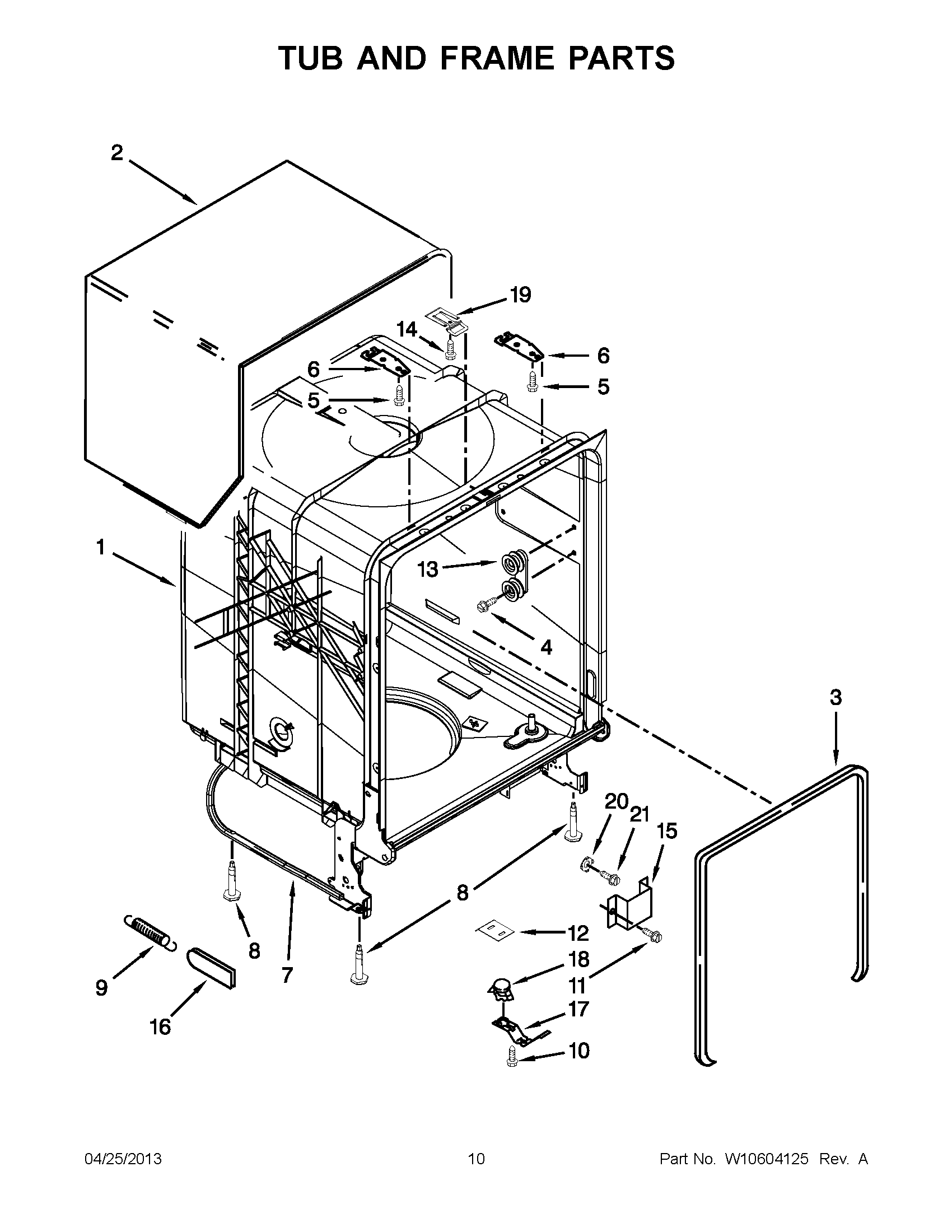

MDB4409PAS1 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2MAY 8573240
3MAY W10524469
4MAY W10341745
5MAY 3367670
6MAY 8269145
7MAY W10271695
8MAY W10304228
9MAY W10337934
10SCREW
11MAY W10165274
12SHIELD, THERMOSTAT
13MAY 8270016
14MAY W10277003
15MAY 8268991
16MAY 8268990
17MAY 3378595
18MAY W10339474
19STRIKE, LATCH
20WASHER, PRONGED CUP
21MAY 3400014
