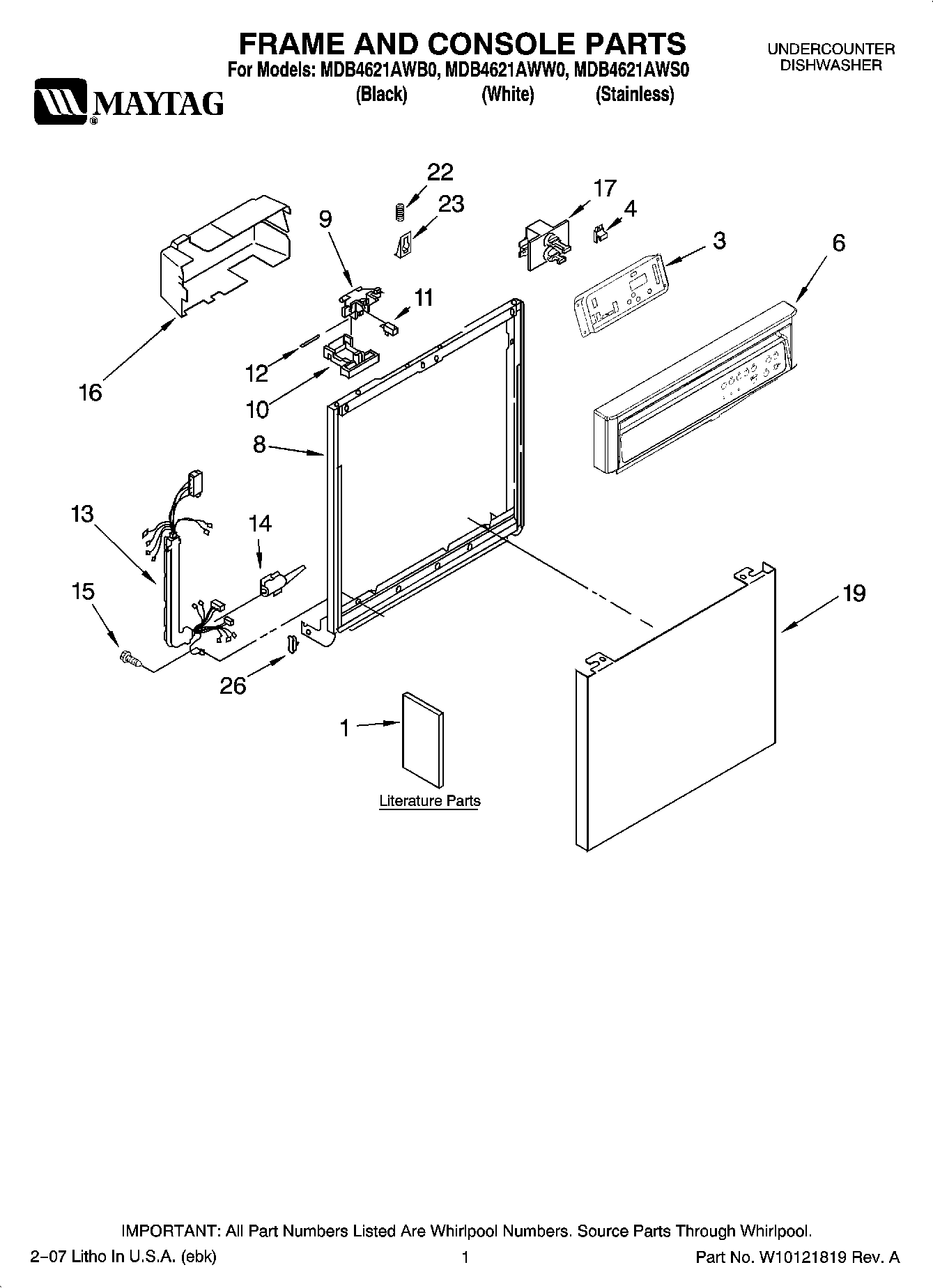

MDB4621AWB0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	Tech Sheet English/French
1	MAY 8535436
1	MAY W10102584
1	MAY W10102582
1	Instructions, Installation (Supplement) (Location Your Water Supply)
3	MAY W10039780
4	MAY 3376359
6	MAY W10102618
6	MAY W10102619
6	MAY W10102617
8	Door Frame
9	MAY 3380854
10	MAY 3380779
10	MAY 3380778
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573190
14	MAY 3376405
15	MAY 3400892
16	MAY 8051304
17	MAY 3374501
19	Front Panel (White)
19	FRONT PANEL (BLACK)
22	Spring, Door Catch
23	MAY 3379357
26	Bearing, Spring, (2)
