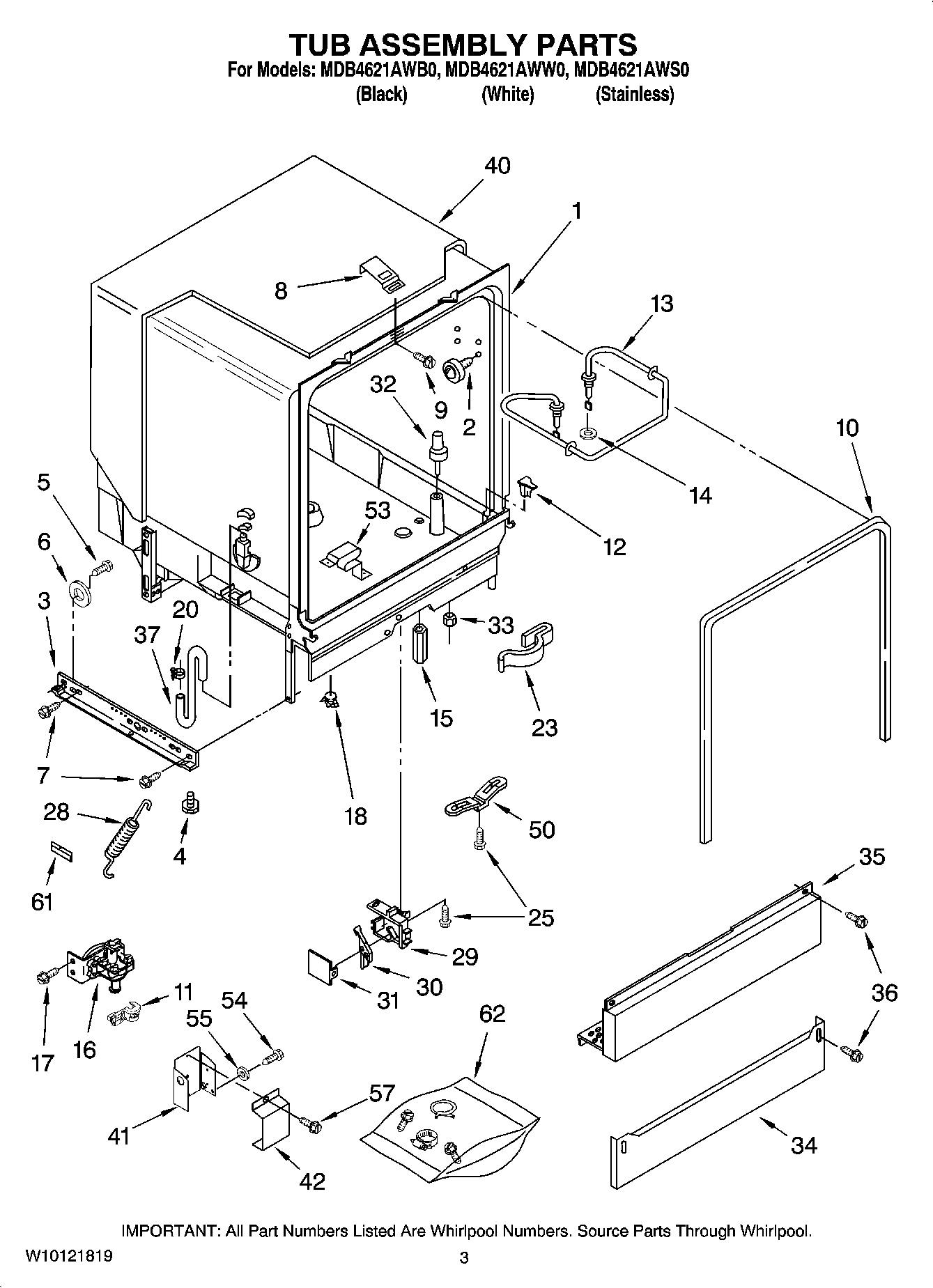

MDB4621AWW0 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	MAY W10082658
2	Tub, Wheel Assembly
3	MAY 3368933
4	LEG, LEVELING
5	SCREW
6	MAY 302819
7	SCREW
8	MAY 3378149
9	Screw, 8-32
10	MAY 3376927
11	MAY 8573061
12	Deflector
13	MAY 8519830
14	WASHER, HEATER ELEMENT
15	NUT, HEATER ELEMENT
16	MAY 8283345
17	Screw
18	MAY 661566
20	MAY 301958
23	MAY 3400935
25	SCREW
28	MAY 3379383
29	MAY 8318218
30	MAY 3369067
31	MAY 8318219
32	MAY 8519587
33	MAY 717488
34	Toe, Panel (White)
34	TOE, PANEL (BLACK)
34	Panel, Toe (Biscuit)
35	ACCESS PANEL (BLACK)
35	Access Panel (White)
35	PANEL, ACCESS(STAINLESS)
36	SCREW (BLACK)
37	MAY 3369414
40	MAY 8573243
41	MAY 8573951
42	Cover Assembly, Terminal Box
50	MAY 3378595
53	MAY 3379740
54	MAY 3400014
55	WASHER, PRONGED CUP
57	Screw, 8-18
61	MAY 8052018
62	Miscellaneous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
