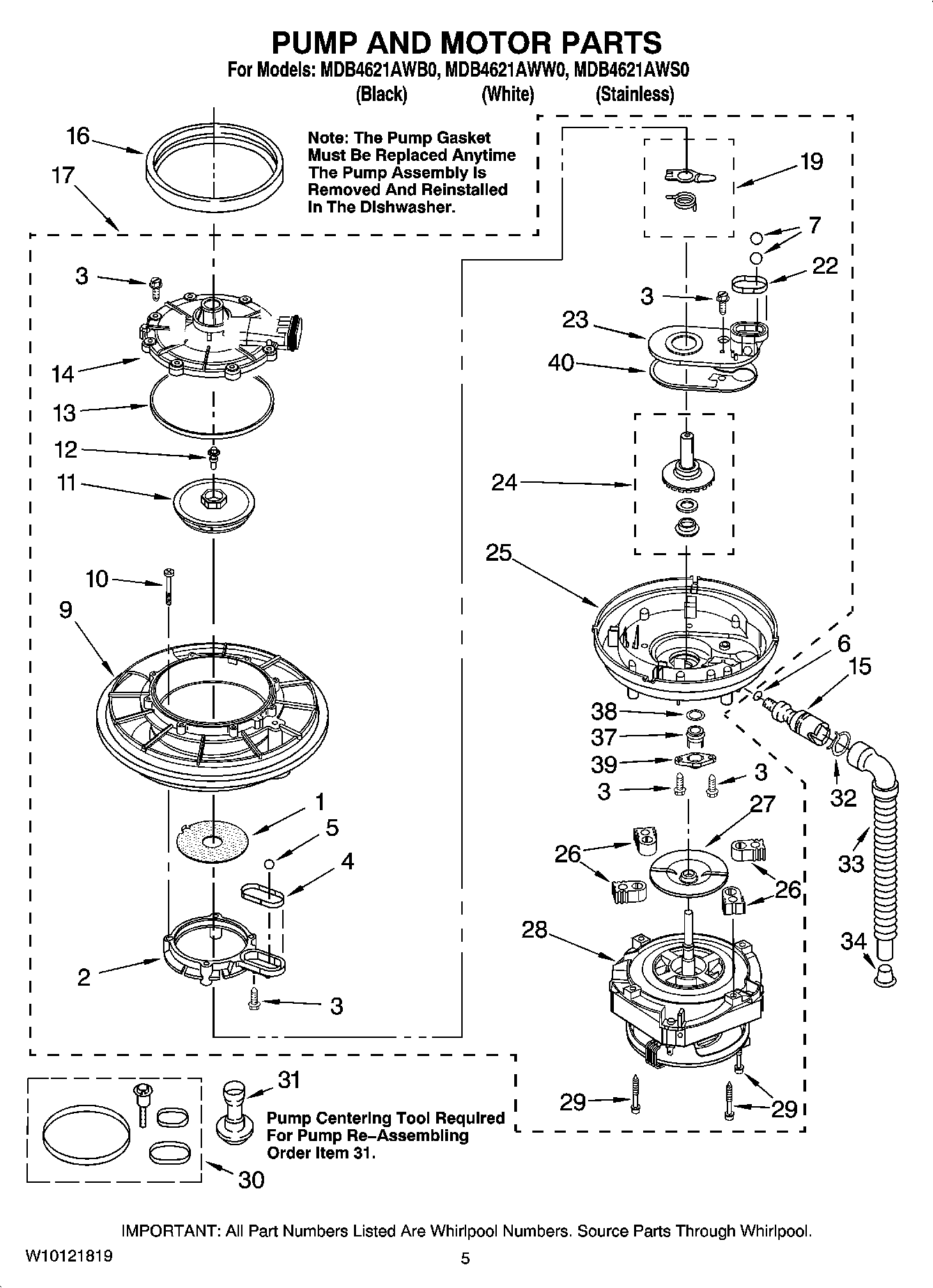

MDB4621AWW0 04 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 9740982
2	MAY 3367173
3	MAY 9741232
4	MAY 302710
5	MAY 302709
6	MAY 95080
7	MAY 719929
9	Filter Assembly (Includes Items 12, 13 & 22) See Note A.
10	MAY 3400001
11	MAY 3378176
12	Screw & Seal 10-32 x 3/4
13	MAY 302711
14	MAY 3376844
15	MAY 3369482
16	MAY 661633
17	MAY 8283498
19	MAY 3378175
22	MAY 302704
23	MAY 3376845
24	MAY 8274950
25	MAY 3376157
26	MAY 3367197
27	MAY 3368270
28	Motor & Fan Assembly (Includes Item 27) (Also Order Item 30) See Note A.
29	Screw (4)
30	MAY 675505
31	MAY 303918
32	MAY 356138
33	MAY 3374077
34	MAY 3371748
37	Thermister
38	MAY 3376723
39	MAY 3376358
40	MAY 9740674
