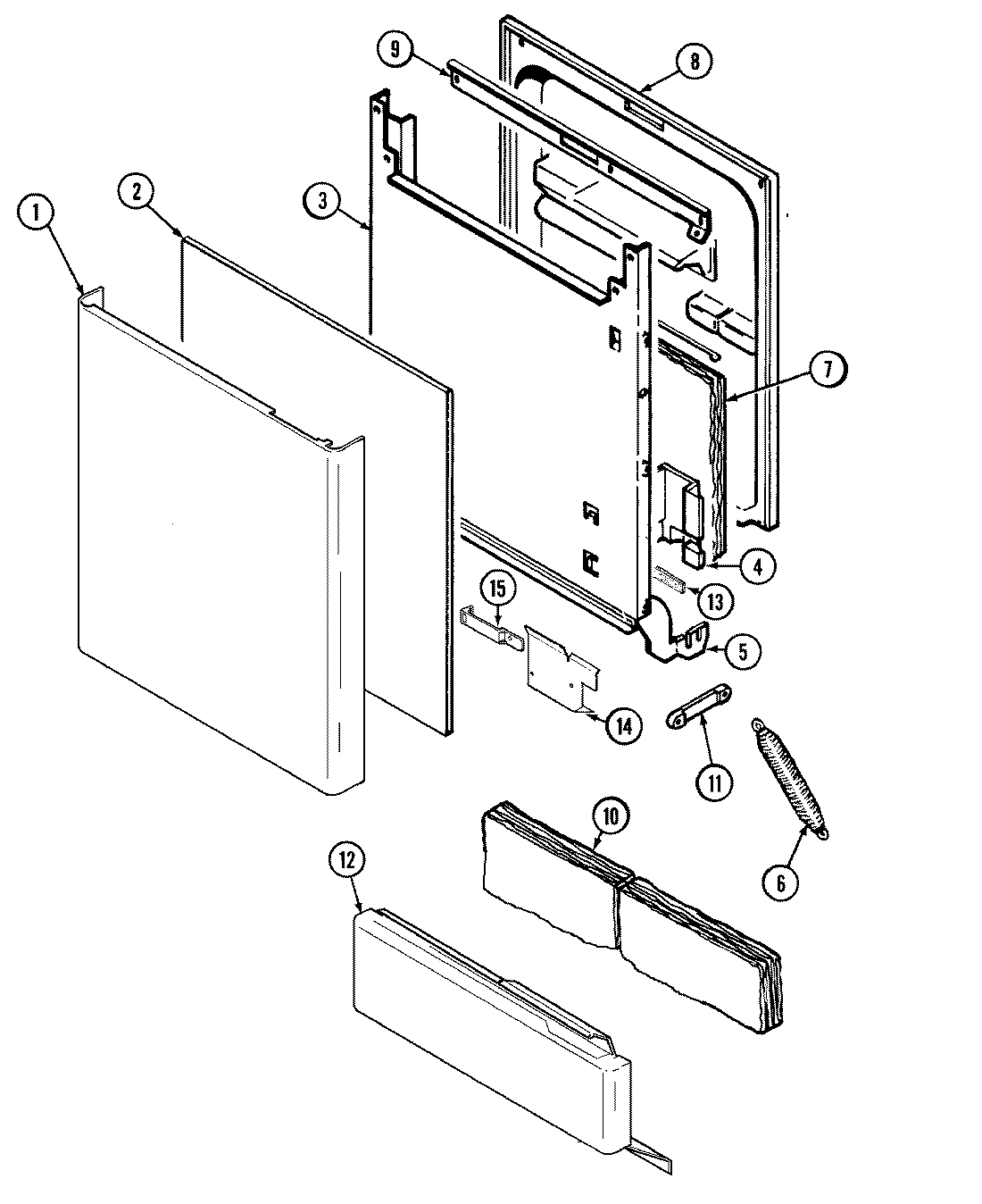

MDB4800AWB 02 – DOOR

MDB4800AWB 02 – DOOR

Written by

in

MDB4800AWB 02 – DOOR

Products

PositionProduct
1MAY DAX2000AXE
1MAY DAX2000AXM
1MAY 99001446
1MAY 99001417
2MAY 99001415
3MAY 99001419
3MAY 99001688
4SCREW, No.8X1/2 HEX WASHER HEAD
4MAY Y912666
5MAY 903070
5MAY 903071
5MAY 99001075
6WP912652 Whirlpool Dishwasher Spring
7MAY Y912669
8MAY 99001805
8MAY 99001806
8MAY 99001807
8MAY 99001783
8WPY912620 Whirlpool Dishwasher Screw
8MAY 99001775
9MAY Y912668
10MAY Y912836
11WP912653 Whirlpool Dishwasher Door Spring Link
12MAY 99001412
13WPW10117748 Whirlpool Dishwasher Insulation Pad
14MAY 99001414
14WPW10339879 Whirlpool Wire Tie
14WP6-912366 Whirlpool Dishwasher Screw
15MAY 99001444
15MAY 912365
