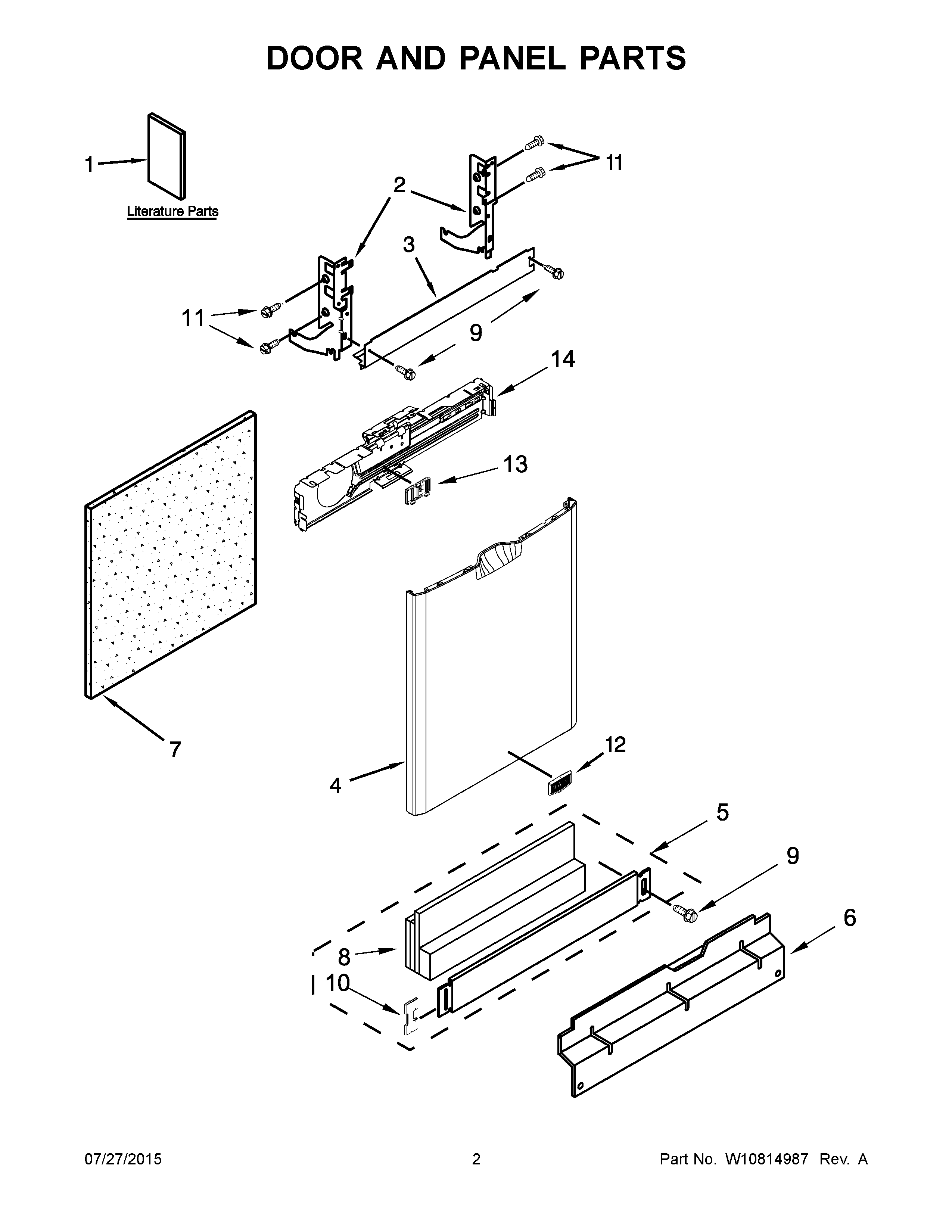

MDB4949SDM2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1B	MAY W10599529
1D	MAY W10751165
1C	MAY W10751162
1A	MAY W10599490
1	MAY W10741197
2A	MAY 8534853
2	MAY 8534854
3	MAY W10726645
4A	MAY W10562111
4	MAY W10562110
4B	MAY W10562114
5A	MAY W10586591
5	MAY W10586590
6A	MAY W10195778
6	MAY W10195777
7	MAY W10620222
8	MAY W10526105
9	SCREW (BLACK)
9A	WP3400836 Whirlpool Dishwasher Screw
10	CLIP, GROUNDING
11	SCREW
12	BADGE
13	MAY W10463662
14	MAY W10641745
