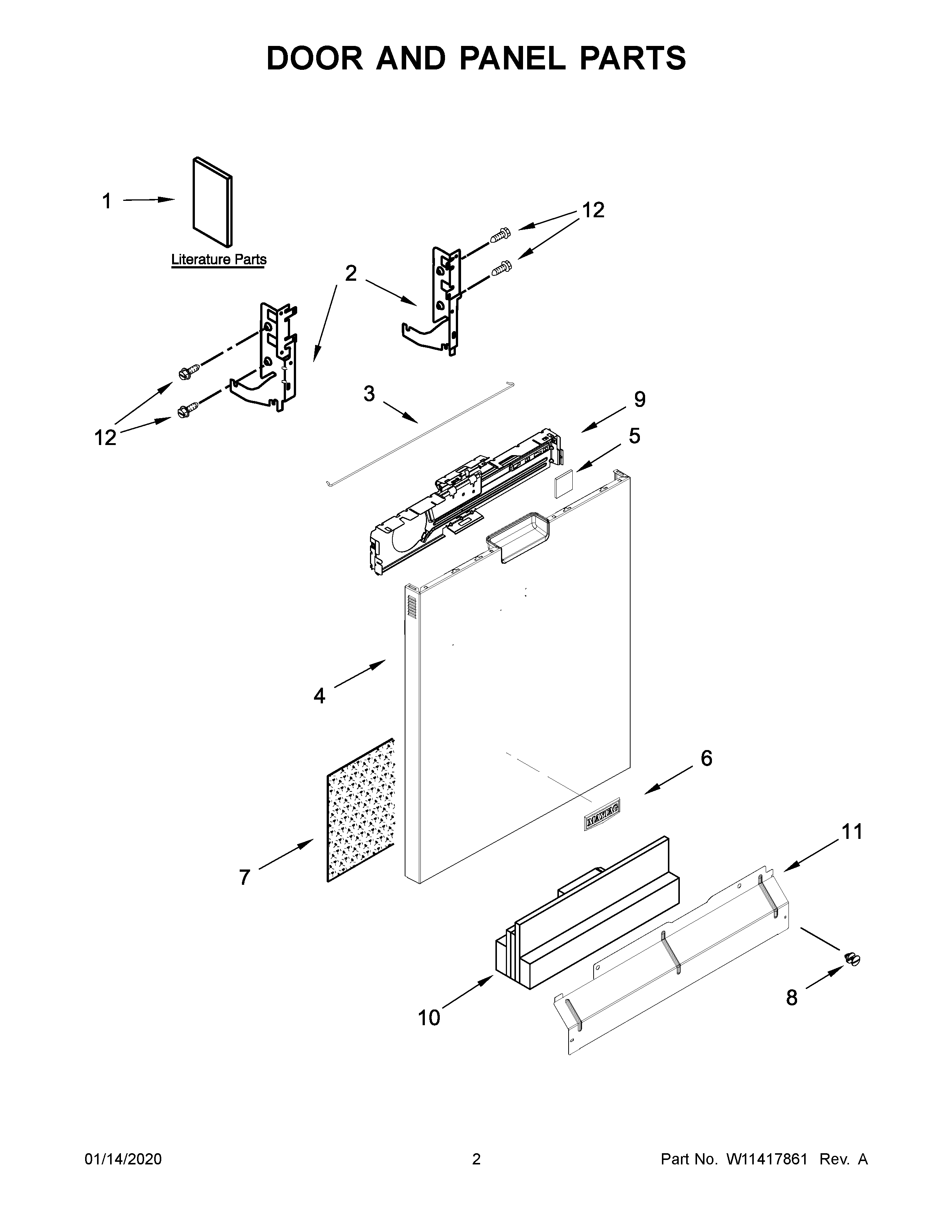

MDB4949SHB1 02 – DOOR AND PANEL PARTS

MDB4949SHB1 02 – DOOR AND PANEL PARTS

Written by

in

MDB4949SHB1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CMAY W11290951
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1BUSE & CARE GUIDE
2AMAY 8534853
2MAY 8534854
3STIFFENER, DOOR
4APANEL FRONT (INCLUDES ITEM 6) (WHITE)
4PANEL FRONT (INCLUDES ITEM 6) (BLACK)
5BLOCK, FOAM
6BADGE
7MAY W10073520
8AMAY W10503549
8MAY W10503548
9MAY W10641745
10INSULATION, FOUR LAYER
11AMAY W10526115
11MAY W10526114
12SCREW
